Ford 460 Series 9000 Cast Street/Strip Rotating Assembly 545ci
InfoVehicle Info Needed
SCATPART NUMBER: 942-1-95010

Ford 460 Series 9000 Cast Street/Strip Rotating Assembly 545ci

$1,90854$2008.99You Save$100.45
ShippingShips on 09/21/2026
Lowest PriceLowest Price Guarantee

460 Main Journals
  • 545 Cubic Inch
  • 4.500'' Crank Stroke
  • 6.700'' Rod Length
  • Pro Sport 4340 Forged H-Beam Connecting Rods
    • Ford 460 Series 9000 Cast Street/Strip Rotating Assembly
    • 545ci
    • 4.390'' Bore
    • Premium Forged Flat Top Piston
    • 11.5:1 w/74cc; 10.7:1 w/80cc; 10.4:1 w/94cc
    • 4.500'' Crank Stroke
    • 6.700'' Rod Length
    • Unbalanced Assembly

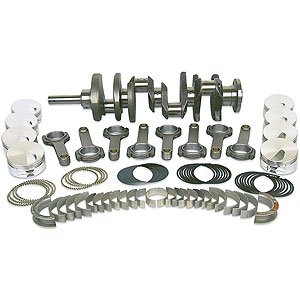

      This Unbalanced Complete Assembly Includes:
    • Crankshaft
    • Connecting Rods with ARP 7/16' 8740 Bolts
    • Piston and Piston Rings
    • Main & Rod Bearings
    • Unbalanced Assembly DOES NOT Include Flexplate and Harmonic Damper.

    Scat rotating assembly component parts are designed for the ultimate in performance. They take the ''guess work'' out of engine assemblies, just wash, Q.C. and assemble.

    Complete Assembly Includes:

      • Series 9000 Cast Pro Comp Stroker Lightweight Crankshaft
      • Pro Comp 4340 Forged I-Beam or Pro Sport 4340 Forged H-Beam Connecting Rods with ARP 8740 7/16'' Cap Bolts
    Show More
    • Forged or Premium Forged Pistons with Piston Rings
    • Main and Connecting Rod Bearings
    • External Balanced Rotating Assemblies Include Flexplate, Harmonic Damper NOT Included
    • Internal Balanced Rotating Assemblies DO NOT Include Flexplate and Harmonic Damper
    • Unbalanced Rotating Assemblies DO NOT Include Flexplate and Harmonic Damper
    • Crank/Rod/Piston Kits DO NOT Include Piston Rings, Main and Connecting Rod Bearings, Flexplate or Harmonic Damper

    Whether you're building a big-block powerhouse for street or strip, the Scat Ford 460 Series 9000 Cast Pro Comp Lightweight Street-Strip Rotating Assembly brings you a balanced, professional-grade core to build from. This kit provides a matched set of internal components—crank, rods, pistons, rings, bearings—designed to minimize guesswork and maximize reliability in high-displacement builds.

    At the heart is a 460-style cast crankshaft from Scat’s 9000-series platform. It’s been carefully machined, stress-relieved, and shot-peened to retain strength and consistency under load. Forged I-beam rods and pistons are spec-matched to that crank, delivered pre-balanced to tight tolerances. Because the components arrive as a complete unit, you bypass the uncertainty of mixing parts from different sources.

    When installed properly, this 460 rotating assembly reduces vibration, maintains journal stability, and supports reliable operation through high RPMs or heavy loads. That means you can push harder on cam, torque, or forced induction without worrying about bottom-end compatibility issues.

    If you're aiming to build a full-bore big-block Ford, this is your ideal foundation. The ford 460 rotating assembly handles large displacements and is compatible with common blocks, headers, and accessory layouts. Whether you're building a tow monster, pro street missile, or SUV sleeper, this rotating assembly offers a solid launching pad.

    For those seeking a complete, strong ford 460 stroker kit, this Scat offering is a compelling choice. Combine it with quality heads, cam, and induction, then tune carefully—and you’ll have a reliable, high-performing big-block that’s ready to rumble.

    Part TypeEngine Rotating Assembly Kit
    Product LineScat Ford 460 Series 9000 Cast Pro Comp Lightweight Street-Strip Rotating Assembly
    BrandSCAT
    Package Height14.0
    Package Width19.0
    Package Length26.0
    Weight106.0 PG
    Part CategoryPerformance Parts
    Crankshaft MaterialCast iron
    Piston And Ring Oversize0.03 in (0.8 mm)
    Main Bearing Undersize (Mm)Stock
    Wrist Pin StyleFloating
    Connecting Rod Beam StyleH-beam
    Rod Bearing Undersize (Mm)Stock
    Piston Ring Facing MaterialPlasmamoly
    Piston StyleFlat top, with single valve relief
    Assembly Lubricant IncludedNo
    Piston Head Volume (Cc)3
    Gaskets IncludedNo
    Rear Main Seal Style2-piece
    Main Bearing Undersize (In.)Stock
    Crankshaft IncludedYes
    Piston Rings IncludedYes
    Bore (Mm)111.506
    Actual Engine Cid545
    Engine Stroke4.5 in (114.3 mm)
    Connecting Rod MaterialForged 4340 steel
    Pistons IncludedYes
    Rod Bearing Undersize (In.)Stock
    QuantitySold as a kit
    Main Bearings IncludedYes
    Engine BalanceInternal
    Rod Bearings IncludedYes
    Connecting Rods IncludedYes
    Oil Pump IncludedNo
    Camshaft IncludedNo
    Timing Chain And Gears IncludedNo
    BalancedNo
    Piston MaterialForged aluminum
    Cam Bearings IncludedNo
    Part FitmentSemi Universal
    Plastigage IncludedNo
    Lifters IncludedNo
    Bore4.39 in (111.506 mm)
    Vendor Part Number1-95010
    Package Qty1
    Package TypeEA
