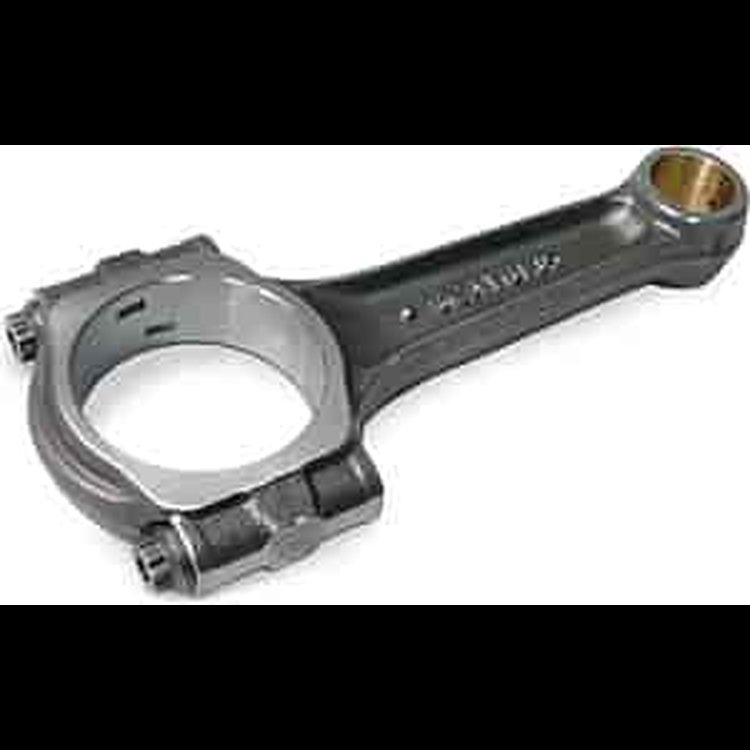

Pro Stock I-Beam Connecting Rods Small Block Chevy

Vehicle Info Needed

SCATPART NUMBER: 942-2570020

Pro Stock I-Beam Connecting Rods Small Block Chevy

Name: Pro Stock I-Beam Connecting Rods Small Block Chevy
Brand: SCAT
SKU: 942-2570020
Price: 483.71 USD
Availability: InStock

^$483⁷¹$509.17You Save$25.46

Ships on 09/08/2026

Lowest Price Guarantee

Small Block Chevy

Crank Rod Pin: 2.000 in.

Wrist Pin: .927 in.

Small Block Chevy
Length: 5.700"
Bushed

Part TypeConnecting Rod

BrandSCAT

Package Height4.1

Package Width10.2

Package Length11.5

Weight12.48 PG

Part CategoryPerformance Parts

Connecting Rod Bolt BrandARP

Rod Journal Diameter2 in (50.8 mm)

Connecting Rod MaterialForged 4340 steel

Connecting Rod Bolt Head Style12-point

Connecting Rod Bolt Material8740 chromoly steel

Wrist Pin StyleFloating

Big End Bore Diameter2.125 in (53.975 mm)

QuantitySold as a set of 8

Connecting Rod Beam StyleI-beam

RemanufacturedNo

Big End Width0.94 in (23.876 mm)

Connecting Rod Length Center To Center5.7 in (144.78 mm)

MagnafluxedNo

Weight Matched SetYes

Fastener Yield Strength (Psi)200,000

Cap Retention StyleCap screw

Pin End Bore Diameter0.927 in (23.5 mm)

Part FitmentSemi Universal

Clearanced For StrokerYes

Vendor Part Number2-ICR5700-2000

Package Qty1

Package TypeEA
