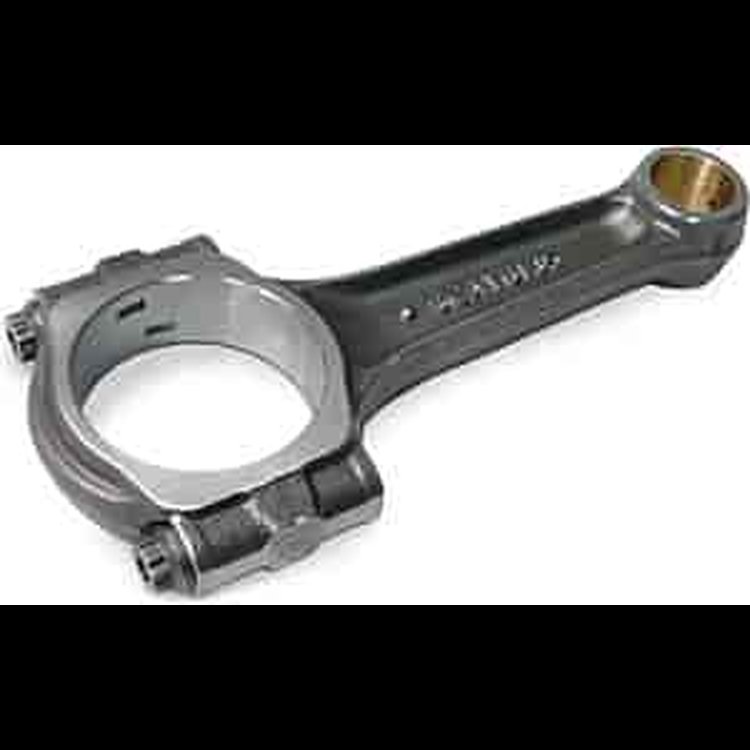

Pro Stock I-Beam Connecting Rods Big Block Chevy

Vehicle Info Needed

SCATPART NUMBER: 942-26135

Pro Stock I-Beam Connecting Rods Big Block Chevy

Name: Pro Stock I-Beam Connecting Rods Big Block Chevy
Brand: SCAT
SKU: 942-26135
Price: 603.24 USD
Availability: OutOfStock

^$603²⁴$634.99You Save$31.75

Lowest Price Guarantee

Big Block Chevy

Wrist Pin: .990 in.

Big Block Chevy
Length: 6.135"
Bushed

Part TypeConnecting Rod

BrandSCAT

Package Height4.1

Package Width9.9

Package Length11.5

Weight14.8 PG

Part CategoryPerformance Parts

Connecting Rod Bolt BrandARP

Rod Journal Diameter2.2 in (55.9 mm)

Connecting Rod MaterialForged 4340 steel

Connecting Rod Bolt Head Style12-point

Connecting Rod Bolt Material8740 chromoly steel

Wrist Pin StyleFloating

Big End Bore Diameter2.325 in (59.055 mm)

QuantitySold as a set of 8

Connecting Rod Beam StyleI-beam

RemanufacturedNo

Big End Width0.992 in (25.197 mm)

Connecting Rod Length Center To Center6.135 in (155.829 mm)

MagnafluxedNo

Weight Matched SetYes

Fastener Yield Strength (Psi)200,000

Cap Retention StyleCap screw

Pin End Bore Diameter0.99 in (25.1 mm)

Part FitmentSemi Universal

Clearanced For StrokerYes

Vendor Part Number2-ICR6135

Package Qty1

Package TypeEA
