Made in USA

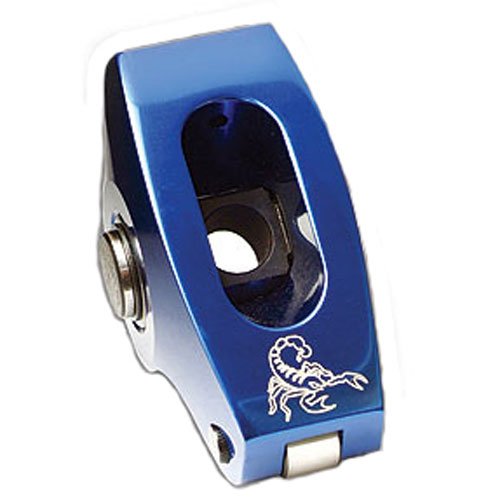

Race Series Rocker Arm Big Block Chevy V8 396-502-Mark IV, Gen V, VI & 8.1 Vortec
InfoVehicle Info Needed
SCORPION RACING PRODUCTSPART NUMBER: 347-SCP1014

Race Series Rocker Arm Big Block Chevy V8 396-502-Mark IV, Gen V, VI & 8.1 Vortec

$48783
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Big Block Chevy V8 396-502-Mark IV,Gen V, VI & 8.1 Vortec / 7/16" Stud
    Race Series Rocker Arm
  • Big Block Chevy V8 396-502-Mark IV,Gen V, VI & 8.1 Vortec
  • 1.7 Ratio
  • 7/16" Stud
  • Set of 16

    CNC-Machined Racing Rockers

    Scorpion Race Series Rocker Arms are lightweight for maximum performance and known for superior quality, as well as being the quietest rockers on the market. Race Rockers are designed to clear 1.625-inch valve springs and CNC-machined from aerospace-grade aluminum with a durable blue-anodized finish for long-term protection.

    Show More

    Like other engine components, rocker arms are designed to work with your engine’s factory horsepower, RPM and torque specs, and will last through the service life of the vehicle. When you build that engine for more power, though, often the OEM rocker arms aren’t up to the job. That’s where Scorpion Race Series Rocker Arms can be a big enhancement toward the performance target you’re shooting for.

    Performance Benefits & Key Features

    Race Rockers from Scorpion are designed to be some of the quietest and smoothest rocker arms available, and are CNC machined from aircraft-grade aluminum for light weight and maximum strength. These rockers are anodized blue for long-term resistance to heat and corrosion, and will clear 1.625 inch valve springs.

    Fitment, Compatibility and Applications

    Scorpion Race Series Rocker Arms are available for small block and big block AMC, small block and big block Chevrolet, Pontiac and Oldsmobile, and small block and big block Ford engines. In addition to the rockers themselves, Scorpion offers entire valve train kits that include the Scorpion rockers along with JEGS stud girdle kit, JEGS pushrods and JEGS pushrod guide plates for small block and big block Chevrolet engines as well as Chevy LS1, LS2, LS6 and small block Ford engines.

    With precision manufacturing, aircraft grade aluminum, exacting specs and CNC machining, Scorpion Race Series rocker arms are a detail you shouldn’t overlook when you’re redesigning and upgrading your valvetrain for higher RPMs and increased power.

Part TypeRocker Arm
Product LineScorpion Race Series Rocker Arms
BrandSCORPION RACING PRODUCTS
Package Height3.6
Package Width4.5
Package Length17.9
Weight8.74 PG
Part CategoryPerformance Parts
Arm FinishBlue anodized
Rocker Arm Ratio1.7
Shims IncludedNo
Maximum Spring Diameter1.625 in (41.275 mm)
Rocker Arm Nut StylePolylock
QuantitySold as a set of 16
Rocker Arm Mounting StyleStud
Self-AligningNo
Rocker Arm StyleFull roller
Rocker Arm Body StyleStandard
Arm MaterialAluminum
Part FitmentSemi Universal
Slot Width0.6 in (15.2 mm)
Vendor Part Number1014
Package Qty1
Package TypeEA
