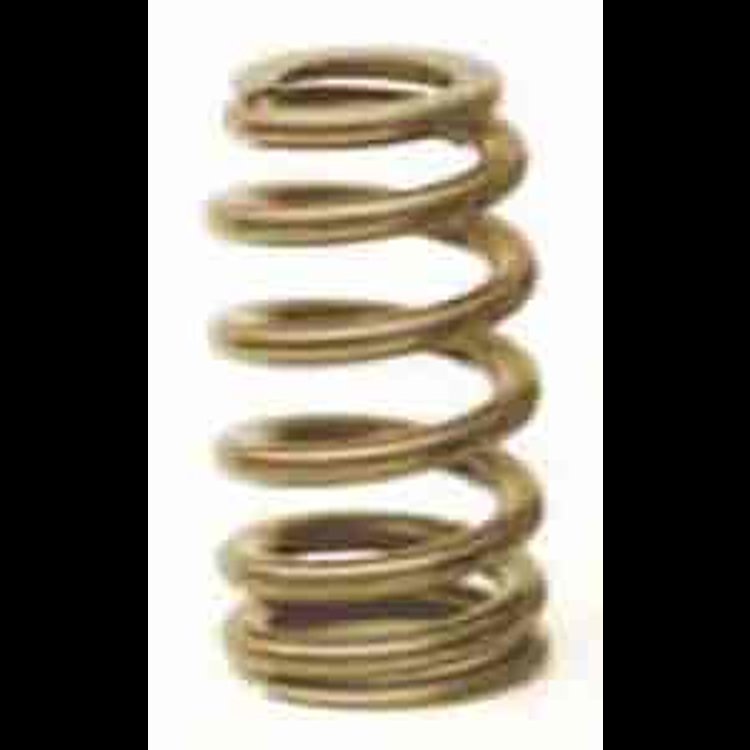

Big Block Chevy
- Ovate Beehive Valve Springs
- Big Block Chevy
- Large End Outside Diameter: 1.445"
- Small End Outside Diameter: 1.095"
- Each
This larger Ovate Beehive Spring can replace numerous springs for flattappet and hydraulic roller applications.
Specifications: - Large End Inside Diameter: 1.000"
- Small End Inside Diameter: .650"
- Installed Height Valve Closed: 155 lbs @ 1.880"
- Open Load Valve Open: 377 lbs @ 1.280"
- Spring Rate: 370 lbs/in
- Maximum Coil Bind: 1.210"
- Maximum Lift: .600
BrandSCORPION RACING PRODUCTS
Package Width0.25
Weight0.25 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
