Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Universal

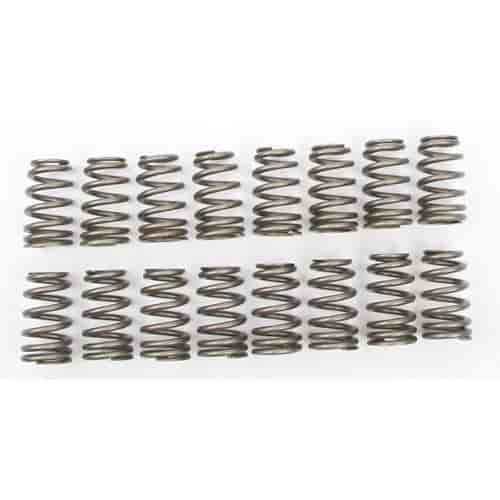

- Ovate Beehive Valve Springs
- Universal
- Large End Outside Diameter: 1.445"
- Small End Outside Diameter: 1.186"
- Each
Ovate Beehive Spring designed for high lift flat tappetapplications and hydraulic roller applications up to .700 lift.
Specifications: - Large End Inside Diameter: .990"
- Small End Inside Diameter: .731"
- Installed Height Valve Closed: 160 lbs @ 1.950"
- Open Load Valve Open: 425 lbs @ 1.300"
- Spring Rate: 408 lbs/in
- Maximum Coil Bind: 1.220"
- Maximum Lift: .700
BrandSCORPION RACING PRODUCTS
Package Width0.25
Weight0.25 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
