Product Discontinued
SCORPION RACING PRODUCTSPART NUMBER: 347-SRP1286-1

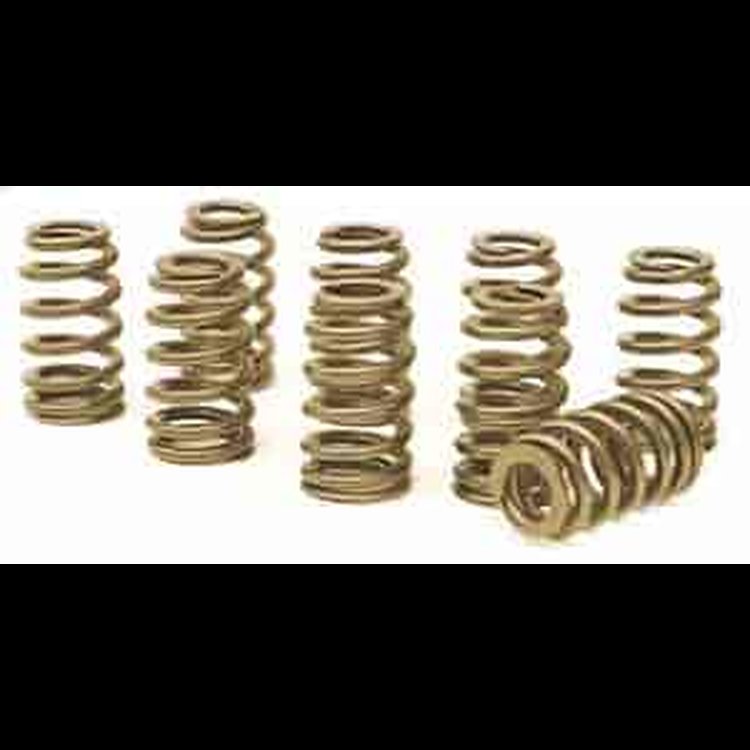

Ovate Beehive Valve Springs Universal - High Performance
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Universal
- Ovate Beehive Valve Springs
- Universal - High Performance
- Large End Outside Diameter: 1.405"
- Small End Outside Diameter: 1.055"
- Each
High Performance Ovate Beehive Spring designed for a variety of hydraulicor flat tappet applications that can make use of a 1.405" Outside Diameterspring. Works well on many small block engines.
Specifications: - Large End Inside Diameter: 1.000"
- Small End Inside Diameter: .650"
- Installed Height Valve Closed: 125 lbs @ 1.750"
- Open Load Valve Open: 295 lbs @ 1.150"
- Spring Rate: 283 lbs/in
- Maximum Coil Bind: 1.060"
- Maximum Lift: .600
- Smaller diameters for minimal weight
- Increased valvetrain stability
- Optimized wire for increased natural frequency
- Reduced end sizes for low moving mass
- Variable pitch for reduced coil surging and higher RPM
- Advanced alloy material specifically designed for racing
Scorpion Ovate Beehive Valve Springs are made from high-tech silicon, nickel, and vanadium alloy to produce the finest ovate beehive valve springs available. Includes exclusive Lifetime Warranty. Proudly made in the USA.
Features
Product LineScorpion Ovate Beehive Valve Springs
BrandSCORPION RACING PRODUCTS
Package Width0.25
Weight0.25 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
