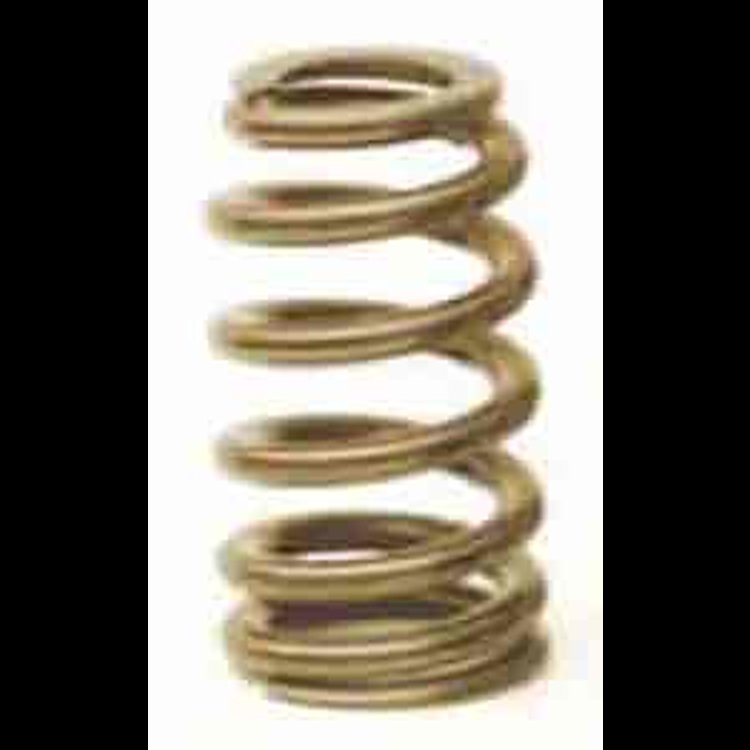

Ovate Beehive Valve Springs Universal

Name: Ovate Beehive Valve Springs Universal
Brand: SCORPION RACING PRODUCTS
SKU: 347-SRP1295-1
Price: 25.19 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Universal

Universal
Large End Outside Diameter: 1.589"
Small End Outside Diameter: 1.185"
Each

Large Ovate Beehive Spring for high lift applications. Higherload and lift capability spring for applications up to .750 lift.This spring is enhanced processed to handle the additionalincreased durability.
Specifications:
Large End Inside Diameter: 1.135"
Small End Inside Diameter: .731"
Installed Height Valve Closed: 150 lbs @ 2.000"
Open Load Valve Open: 385 lbs @ 1.250"
Spring Rate: 313 lbs/in
Maximum Coil Bind: 1.180"
Maximum Lift: .750
