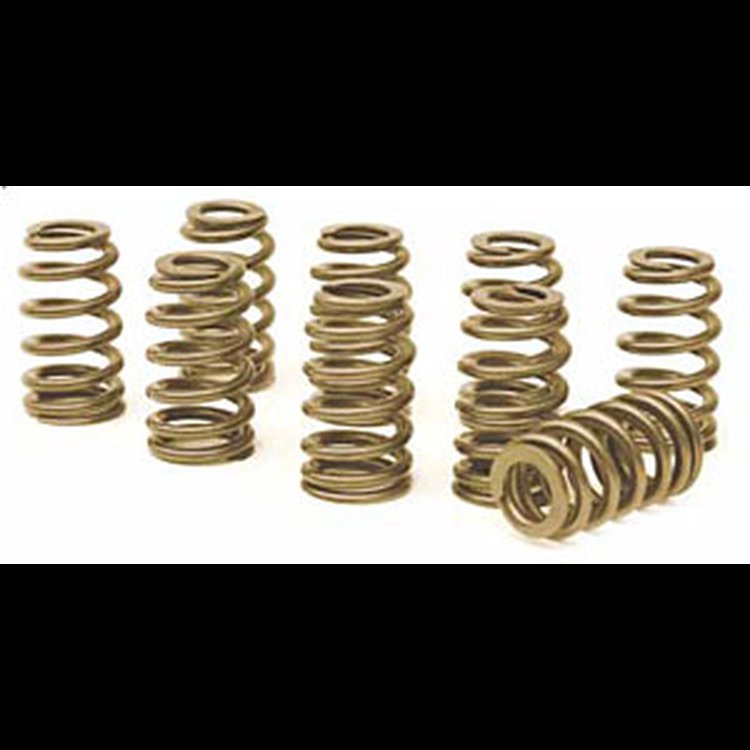

Ovate Beehive Valve Springs High Performance LS1

Name: Ovate Beehive Valve Springs High Performance LS1
Brand: SCORPION RACING PRODUCTS
SKU: 347-SRP1518
Price: 303.29 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GM LS1

High Performance LS1
Large End Outside Diameter: 1.290"
Small End Outside Diameter: 1.055"
Set of 16

High performance LS1 spring that features additionalnitriding processing for increased durability for high liftapplications up to .650 lift. This spring remains a drop-inreplacement for extremely high demanding applications.
Specifications:
Large End Inside Diameter: .885"
Small End Inside Diameter: .650"
Installed Height Valve Closed: 130 lbs @ 1.800"
Open Load Valve Open: 318 lbs @ 1.200"
Spring Rate: 313 lbs/in
Maximum Coil Bind: 1.140"
Maximum Lift: .650
