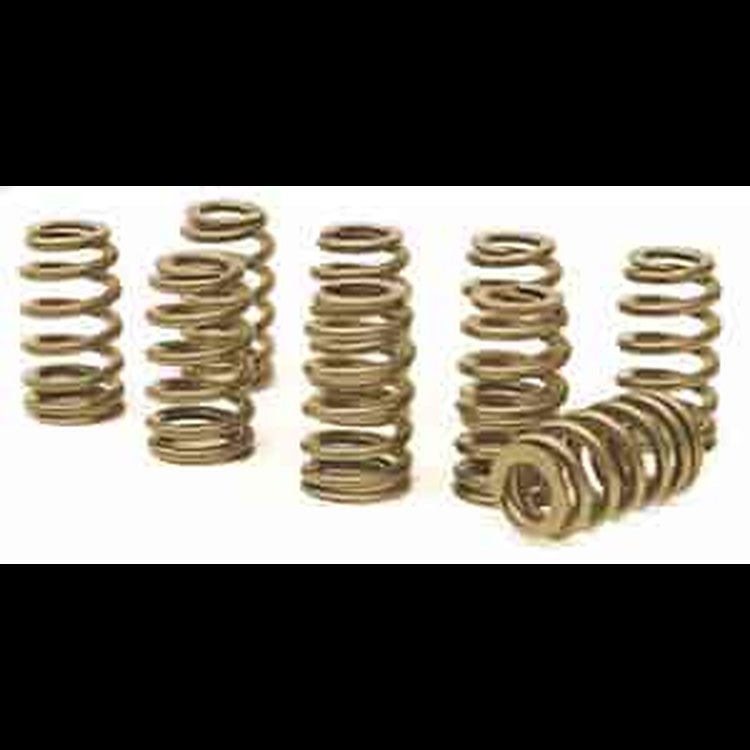

Ovate Beehive Valve Springs Big Block Chevy - High Performance

Name: Ovate Beehive Valve Springs Big Block Chevy - High Performance
Brand: SCORPION RACING PRODUCTS
SKU: 347-SRP1520
Price: 303.29 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Big Block Chevy

Big Block Chevy - High Performance
Large End Outside Diameter: 1.445"
Small End Outside Diameter: 1.095"
Set of 16

High performance Big Block Chevy spring that featuresadditional nitriding processing for increased durability forhigh lift applications up to .650 lift. This larger Ovate Beehivecan run more aggressive higher valve lift applications.
Specifications:
Large End Inside Diameter: 1.000"
Small End Inside Diameter: .650"
Installed Height Valve Closed: 155 lbs @ 1.880"
Open Load Valve Open: 377 lbs @ 1.280"
Spring Rate: 370 lbs/in
Maximum Coil Bind: 1.210"
Maximum Lift: .650
