Chrysler

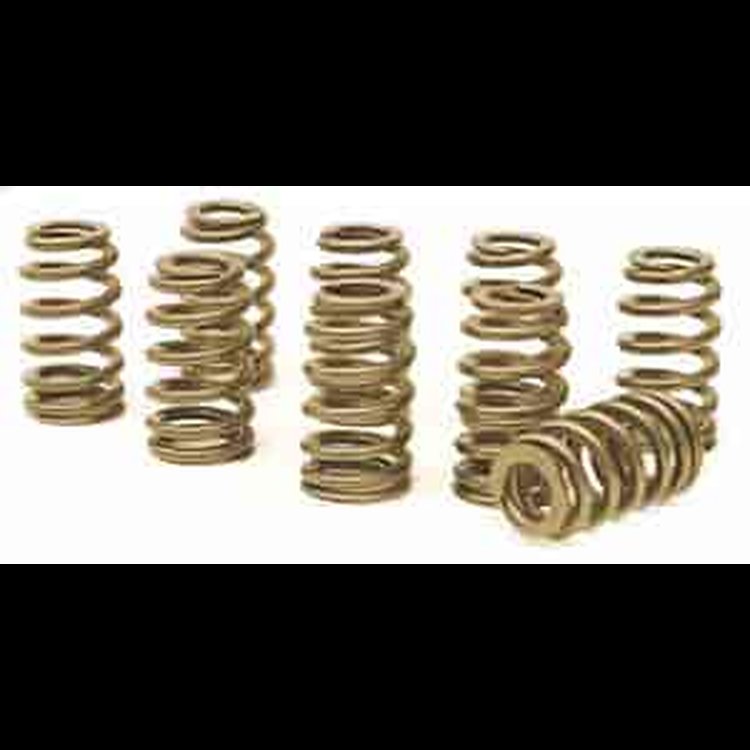

- Ovate Beehive Valve Springs
- Chrysler Hemi
- Large End Outside Diameter: 1.210"
- Small End Outside Diameter: 1.035"
- Set of 16
Nitrided version of the 347-SRP1235 Hemi spring. This OvateBeehive Spring has additional processing for aggressivevalvetrains and high RPM.
Specifications: - Large End Inside Diameter: .805"
- Small End Inside Diameter: .630"
- Installed Height Valve Closed: 140 lbs @ 1.800"
- Open Load Valve Open: 355 lbs @ 1.200"
- Spring Rate: 358 lbs/in
- Maximum Coil Bind: 1.160"
- Maximum Lift: .600
- Smaller diameters for minimal weight
- Increased valvetrain stability
- Optimized wire for increased natural frequency
- Reduced end sizes for low moving mass
- Variable pitch for reduced coil surging and higher RPM
- Advanced alloy material specifically designed for racing
Scorpion Ovate Beehive Valve Springs are made from high-tech silicon, nickel, and vanadium alloy to produce the finest ovate beehive valve springs available. Includes exclusive Lifetime Warranty. Proudly made in the USA.
Features
Product LineScorpion Ovate Beehive Valve Springs
BrandSCORPION RACING PRODUCTS
Package Width3.0
Weight3.0 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
