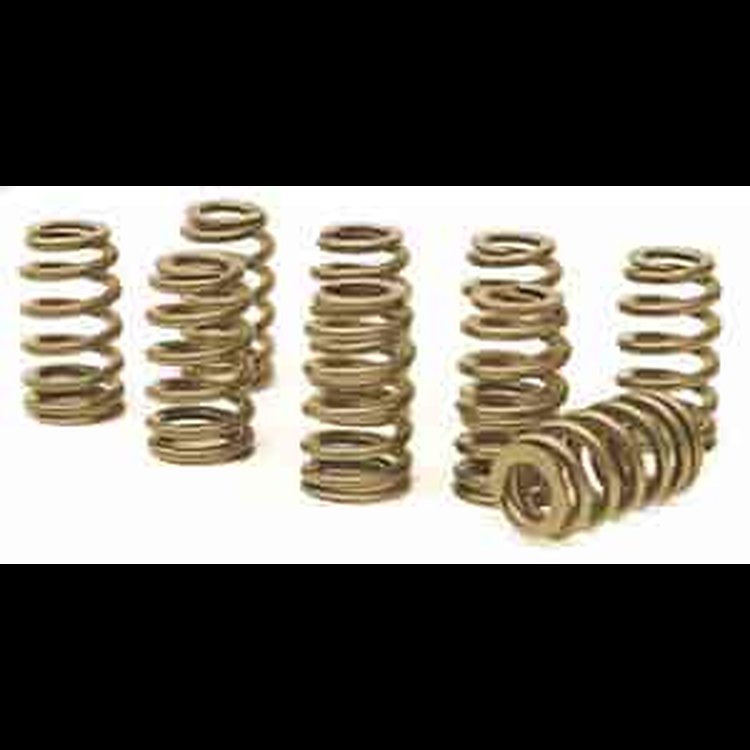

Ovate Beehive Valve Springs Universal

Name: Ovate Beehive Valve Springs Universal
Brand: SCORPION RACING PRODUCTS
SKU: 347-SRP1595
Price: 368.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Universal

Universal
Large End Outside Diameter: 1.589"
Small End Outside Diameter: 1.185"
Set of 16

Large Ovate Beehive Spring for high lift applications. Higherload and lift capability spring for applications up to .750 lift.This spring is enhanced processed to handle the additionalincreased durability.
Specifications:
Large End Inside Diameter: 1.135"
Small End Inside Diameter: .731"
Installed Height Valve Closed: 150 lbs @ 2.000"
Open Load Valve Open: 385 lbs @ 1.250"
Spring Rate: 313 lbs/in
Maximum Coil Bind: 1.180"
Maximum Lift: .750
