Vehicle Info NeededSCOTT DRAKEPART NUMBER: 204-PBC-67-2

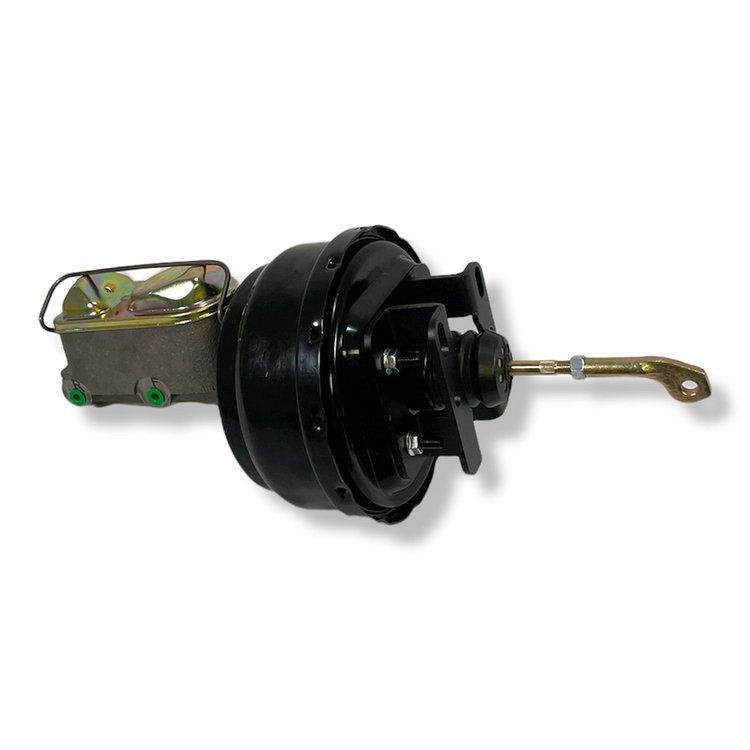

Power Brake Conversion 1967-1970 Ford Mustang
$58795
Ships on 10/06/2026
Lowest Price GuaranteePower Brake Conversions
Power Brake Conversion1967-1970 Ford Mustang Automatic Transmission Drum Brakes Direct Bolt-In Installation Keeps Original Brake Pedal Requires 15 pounds minimum of engine vacuum
Scott Drake PBC-67-2 Features:
Now available from Scott Drake Mustang, the safety and increased stopping power you have been looking for on 1967-70 Mustang in a very easy to install unit. This setup utilizes a new Bendix style power brake booster with increased sensitivity and a 1 year warranty,* new large capacity dual chamber master cylinder, specially designed mounting bracket to allow direct bolt in while retaining original brake pedal assembly and clearance of the shock tower. The push rod is preset but is adjustable to move the pedal height up or down. The only modification necessary is bending new lines from the master cylinder to the distribution block. See below for brake lines to simplify the installation. We also offer a rebuilt distribution block part number C7ZZ-2B257-A which is not included in the Power Brake Conversion. This part may be required depending on what your car is currently equipped with. 1967 - 1970 cars already have one from the factory but it is a good idea to replace it. This kit is easy to install. This is a very economical solution for those that are looking for an improved braking system along with the added safety of a dual chamber master cylinder. Note: Booster requires a minimum 15 pounds of engine vacuum pressure at idle for maximum stopping power. Some high performance high lift camshafts may not create enough vacuu m. Stock engine vacuum pressure is 18 pounds.Part TypeBrake Master Cylinder and Booster Assembly
BrandSCOTT DRAKE
Package Height11.0
Package Width13.5
Package Length20.0
Weight15.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberPBC-67-2
Package Qty1
Package TypeEA
