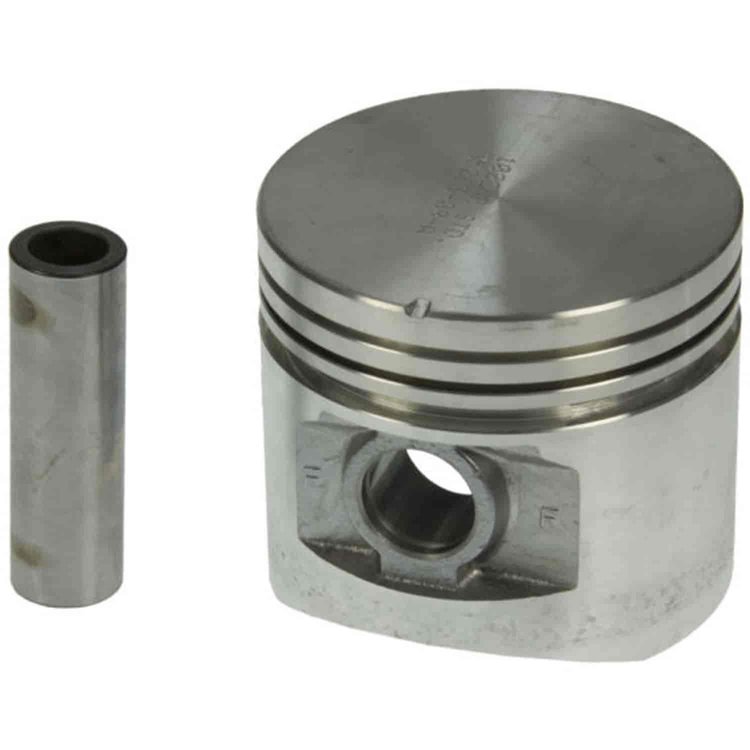

Pistons Ford 292ci Y-Block V8 +030

Name: Pistons Ford 292ci Y-Block V8 +030
Brand: SEALED POWER
SKU: 844-1022P30
Price: 287.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford Pistons

Ford 292ci Y-Block V8 1955-1964
3.780" Bore (+.030")
Flat Top
Set of 8

Features:
Cast with FM413 Eutectic Aluminum with 12% Silicon for Strength and Durability
Performance & Dependability of OE Pistons
High Quality Aluminum Casting & Machining Provide Reliability and Durability
Exacting Tolerances
Meets or Exceeds OEM Specifications
Up-Tilt Ring Grooves Improve Piston to Ring Sealing & Providing Great Blow-By Control

Technical Specs:
Material: Cast Aluminum
Bore: 3.780' (96.012mm)
Piston Top: Flat Top, No Valve Reliefs - 8.6:1 Compression Ratio
Compression Height: 1.760"
Compression Ring Groove: 5/64"
Second Ring Groove: 5/64"
Oil Ring Groove Width: 3/16"
Full Length: N/A
Pin Size: 0.9122" O.D. (23.17mm)
Pin Type: Press-Fit
Pin Offset: N/A
Skirt Type: Non-Coated
Piston Skirt Clearance: N/A
Notes: Use Piston Ring p/n 844-E240X30 Standard Set; p/n 844-E240K30 Premium Set (Rings Not Included)
