Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

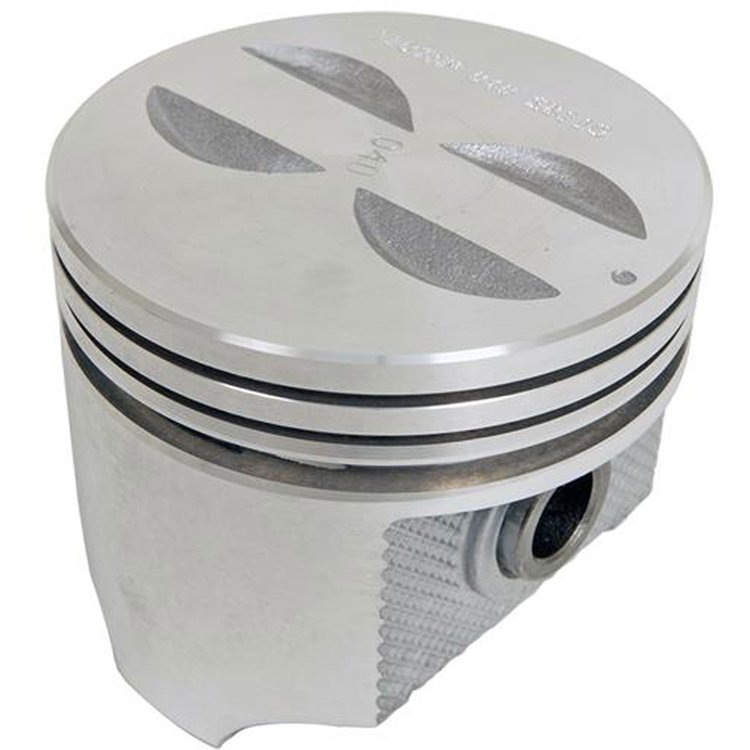

GM Pistons
- Cast Pistons
- Chevy 230ci Inline-6 1963-1970
- 3.935" Bore (Standard)
- Flat Top w/4 Valve Reliefs
- Set of 6
Technical Specs: - Material: Cast Aluminum
- Bore: 3.935' (99.949mm)
- Piston Top: Flat Top w/4 Valve Reliefs
- Compression Height: 1.780"
- Compression Ring Groove: 5/64"
- Second Ring Groove: 5/64"
- Oil Ring Groove Width: 3/16"
- Full Length: N/A
- Pin Size: 0.9278" O.D. (23.57mm)
- Pin Type: N/A
- Skirt Type: Non-Coated
- Piston Skirt Clearance: N/A
- Notes: Use Piston Ring p/n 844-E234X60 Standard Set; p/n 844-E234K60 Premium Set (Rings Not Included)
Part TypePiston
BrandSEALED POWER
Package Height5.0
Package Width11.0
Package Length16.0
Weight1.62 PG
Part CategoryReplacement Parts
QuantitySet of 6
Vendor Part Number1107NP60
Package Qty1
Package TypeEA
