Vehicle Info NeededSEALED POWERPART NUMBER: 844-235NP20

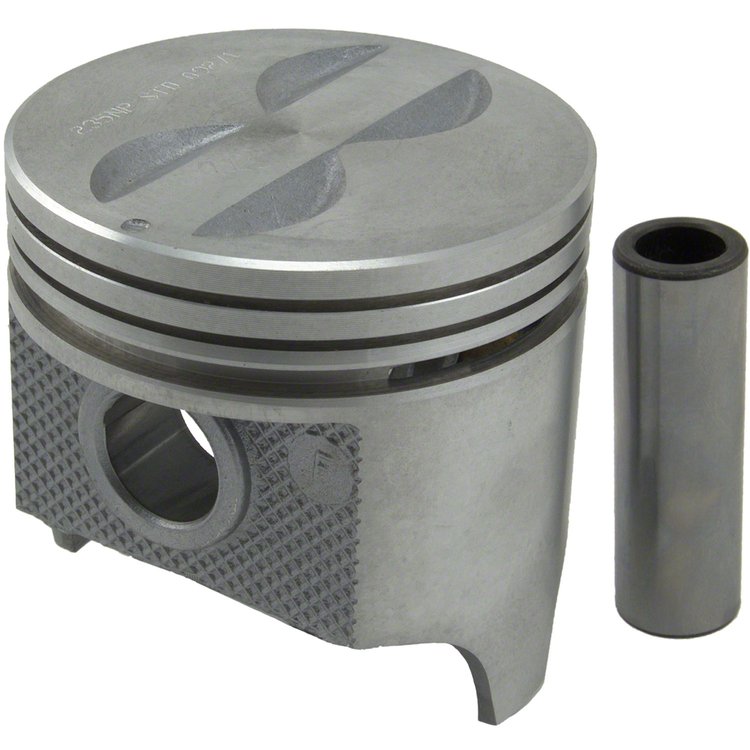

Pistons Chevy 283ci V8 +020
$24332
Ships on 09/23/2026
Lowest Price GuaranteeGM Pistons
- Cast Pistons
- Chevy 283ci V8 1957-1967
- 3.895" Bore (+.020")
- Flat Top w/4 Valve Reliefs
- Set of 8
Technical Specs: - Material: Cast Aluminum
- Bore: 3.895' (98.93mm)
- Piston Top: Flat Top w/4 Valve Reliefs
- Compression Height: 1.780"
- Compression Ring Groove: 5/64"
- Second Ring Groove: 5/64"
- Oil Ring Groove Width: 3/16"
- Full Length: N/A
- Pin Size: 0.9278" O.D. (23.57mm)
- Pin Type: N/A
- Skirt Type: Non-Coated
- Piston Skirt Clearance: N/A
- Notes: Use Piston Ring p/n 844-E245X20 Standard Set; p/n 844-E245K20 Premium Set (Rings Not Included)
- The value of Speed-Pro's line of cast aluminum pistons are hard to beat for budget or stock-style rebuilds. They are made from high-quality aluminum alloys and feature a carefully controlled casting, heat-treating, and CNC-machining process. And, because they're designed and manufactured to exceed OEM specs, they'll provide improved reliability, performance, and a long service life.
Part TypePiston
Product LineSpeed-Pro Cast Pistons
BrandSEALED POWER
Package Height4.4
Package Width9.3
Package Length18.5
Weight14.35 PG
Part CategoryReplacement Parts
QuantitySet of 8
Vendor Part Number235NP20
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
