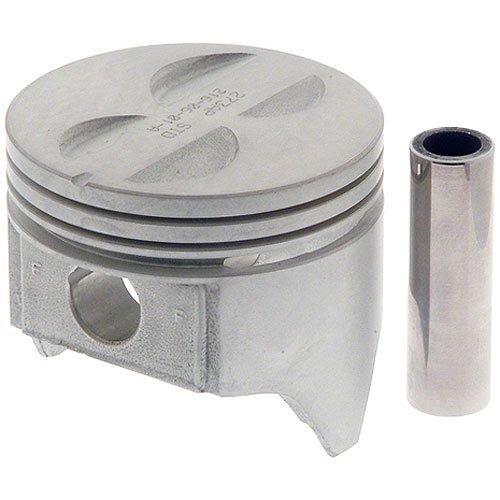

Pistons Chevy 307ci V8 +060

Name: Pistons Chevy 307ci V8 +060
Brand: SEALED POWER
SKU: 844-295P60
Price: 344.77 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GM Pistons

Cast Pistons

Chevy 307ci V8

3.9350" Bore (+.060")

Flat Top w/4 Valve Reliefs

Set of 8

Features:

Cast with FM132 Eutectic Proprietary Alloy
Performance & Dependability of Original Equipment Pistons
High-Quality Aluminum
Utilizes ISO & QS Certified Manufacturing
Meets or Exceeds OEM Specifications

Technical Specs:
Material: Cast Aluminum
Bore: 3.935' (99.949mm)
Piston Top: Flat Top w/4 Valve Reliefs
Compression Height: 1.655"
Compression Ring Groove: 5/64"
Second Ring Groove: 5/64"
Oil Ring Groove Width: 3/16"
Full Length: N/A
Pin Size: 0.9275" O.D. (23.559mm)
Pin Type: N/A
Pin Offset: 0.06" (1.524mm)
Skirt Type: Non-Coated
Piston Skirt Clearance: N/A
Notes: Use Piston Ring p/n 844-E245X60 Standard Set; p/n 844-E245K60 Premium Set (Rings Not Included)

The value of Speed-Pro's line of cast aluminum pistons are hard to beat for budget or stock-style rebuilds. They are made from high-quality aluminum alloys and feature a carefully controlled casting, heat-treating, and CNC-machining process. And, because they're designed and manufactured to exceed OEM specs, they'll provide improved reliability, performance, and a long service life.

Part TypePiston

Product LineSpeed-Pro Cast Pistons

BrandSEALED POWER

Package Height4.0

Package Width4.3

Package Length5.1

Weight1.64 PG

Part CategoryReplacement Parts

QuantitySet of 8

Vendor Part Number295P60

Package Qty1

Package TypeEA
