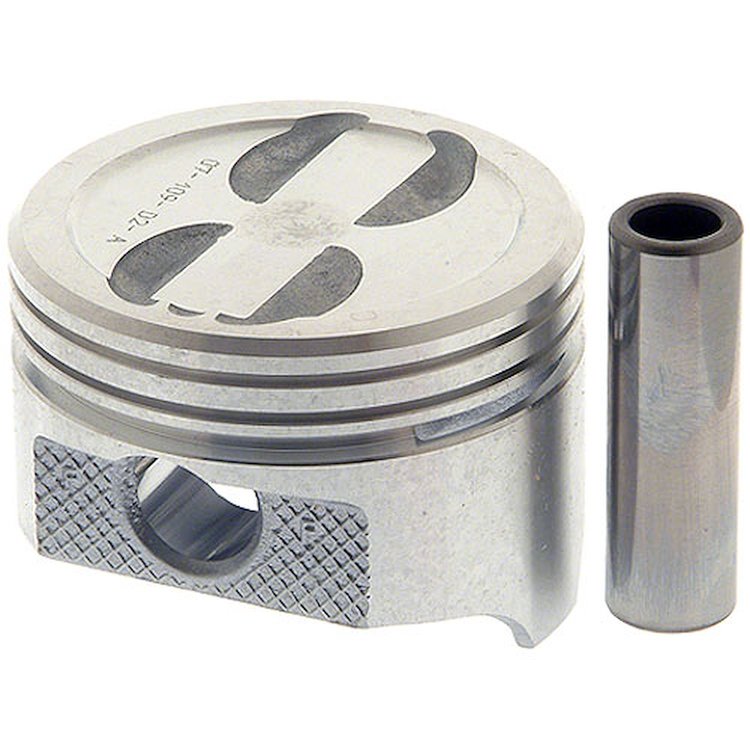

Pistons AMC/Jeep 360ci V8 Standard

Name: Pistons AMC/Jeep 360ci V8 Standard
Brand: SEALED POWER
SKU: 844-362NP
Price: 799.87 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chrysler / Dodge / AMC / Jeep Pistons

AMC/Jeep 360ci V8 1970-1991
4.080" Bore (Standard)
Recessed Head w/4 Valve Reliefs
Set of 8

Features:
Cast with FM132 Eutectic Proprietary Alloy
Performance & Dependability of Original Equipment Pistons
High Quality Aluminum
Utilizes ISO & QS Certified Manufacturing
Meets or Exceeds OEM Specifications

Technical Specs:
Material: Cast Aluminum
Bore: 4.0800' (103.6000mm)
Piston Top: Recessed Head w/4 Valve Reliefs, 0.190" Deep x 3.640" Diameter - 9.0:1 Comp Ratio
Compression Height: 1.581"
Compression Ring Groove: 5/64"
Second Ring Groove: 5/64"
Oil Ring Groove Width: 3/16"
Full Length: N/A
Pin Size: 0.9310" O.D. (23.647mm)
Pin Type: Press
Pin Offset: 0.06" (1.524mm)
Skirt Type: Non-Coated
Piston Skirt Clearance: N/A
Notes: Use Piston Ring p/n 844-E301X Standard Set; p/n 844-E301K Premium Set (Rings Not Included)

The value of Speed-Pro's line of cast aluminum pistons are hard to beat for budget or stock-style rebuilds. They are made from high-quality aluminum alloys and feature a carefully controlled casting, heat-treating, and CNC-machining process. And, because they're designed and manufactured to exceed OEM specs, they'll provide improved reliability, performance, and a long service life.

Part TypePiston

Product LineSpeed-Pro Cast Pistons

BrandSEALED POWER

Package Height3.5

Package Width4.6

Package Length5.8

Weight1.65 PG

Part CategoryReplacement Parts

QuantitySet of 8

Part FitmentSemi Universal

Vendor Part Number362NP

Package Qty1
