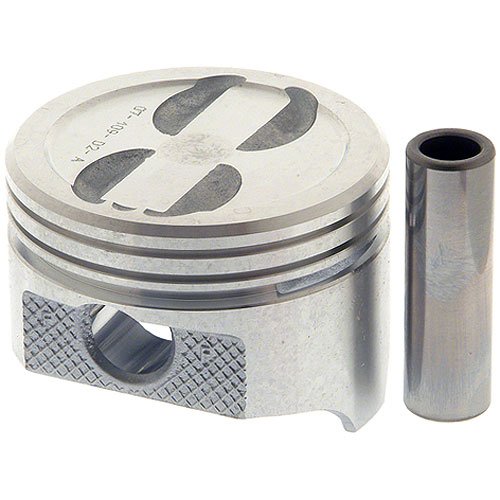

Pistons AMC Jeep 360ci V8 +020

Name: Pistons AMC Jeep 360ci V8 +020
Brand: SEALED POWER
SKU: 844-362NP20
Price: 382.06 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chrysler / Dodge / AMC / Jeep Pistons

Cast Pistons

AMC/Jeep 360ci V8 1970-1991

4.100" Bore (+.020")

Recessed Head w/4 Valve Reliefs

Set of 8

Features:

Cast with FM132 Eutectic Proprietary Alloy
Performance & Dependability of Original Equipment Pistons
High Quality Aluminum
Utilizes ISO & QS Certified Manufacturing
Meets or Exceeds OEM Specifications

Technical Specs:
Material: Cast Aluminum
Bore: 4.1000' (104.1400mm)
Piston Top: Recessed Head w/4 Valve Reliefs, 0.190" Deep x 3.640" Diameter - 9.0:1 Comp Ratio
Compression Height: 1.581"
Compression Ring Groove: 5/64"
Second Ring Groove: 5/64"
Oil Ring Groove Width: 3/16"
Full Length: N/A
Pin Size: 0.9310" O.D. (23.647mm)
Pin Type: Press
Pin Offset: 0.06" (1.524mm)
Skirt Type: Non-Coated
Piston Skirt Clearance: N/A
Notes: Use Piston Ring p/n 844-E301X20 Standard Set; p/n 844-E301K20 Premium Set (Rings Not Included)
