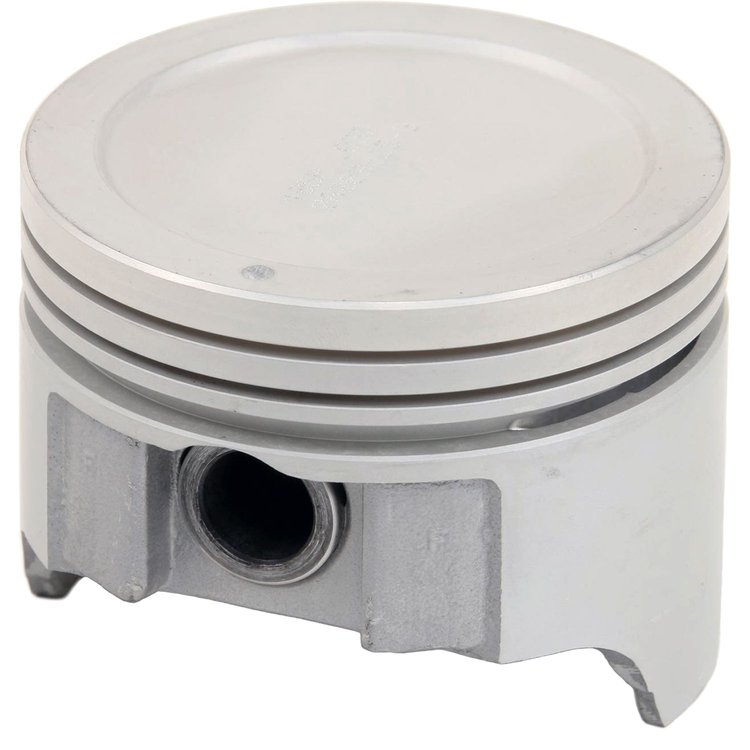

Pistons Chrysler/Dodge 360ci V8 +020

Name: Pistons Chrysler/Dodge 360ci V8 +020
Brand: SEALED POWER
SKU: 844-405P20
Price: 155.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chrysler / Dodge / AMC / Jeep Pistons

Chrysler/Dodge 360ci 5.9L V8 1971-1989
4.020" Bore (+.020")
Dish Top
Set of 8

Technical Specs:
Material: Cast Aluminum
Bore: 4.020' (102.10mm)
Piston Top: Dish Top, 0.070" Deep x 3.140" Diameter
Compression Height: 1.576"
Compression Ring Groove: 5/64"
Second Ring Groove: 5/64"
Oil Ring Groove Width: 3/16"
Full Length: N/A
Pin Size: 0.9842" O.D. (24.998mm)
Pin Type: N/A
Skirt Type: Non-Coated
Piston Skirt Clearance: N/A
Notes: Use Piston Ring p/n 844-E251X20 Standard Set; p/n 844-E251K20 Premium Set (Rings Not Included)
