Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chrysler / Dodge / AMC / Jeep Pistons

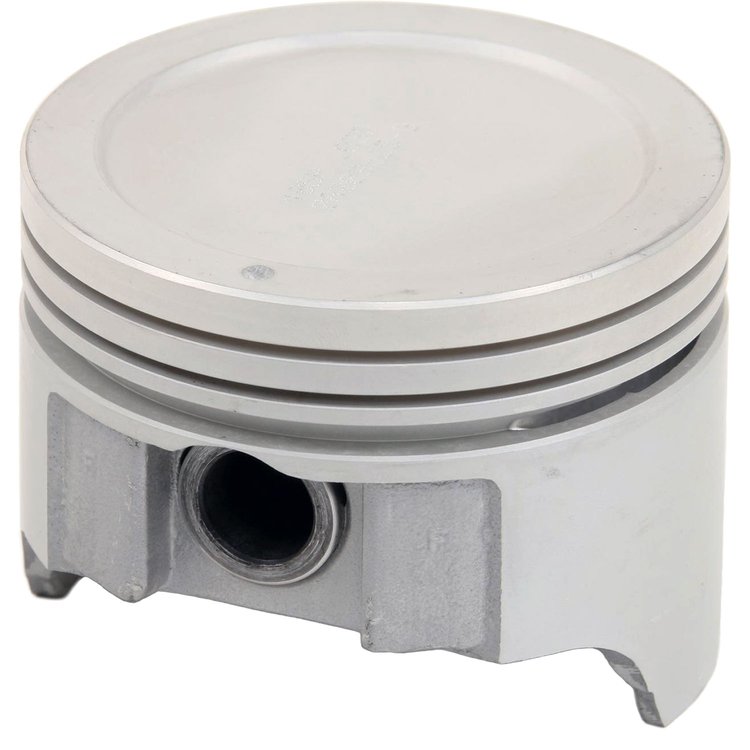

Cast PistonsChrysler/Dodge 360ci 5.9L V8 1971-1989 4.030" Bore (+.030") Dish Top Set of 8
Technical Specs:
- Material: Cast Aluminum
- Bore: 4.030' (102.36mm)
- Piston Top: Dish Top, 0.070" Deep x 3.140" Diameter
- Compression Height: 1.576"
- Rod Length: N/A
- Stroke: N/A
- Compression Ring Groove: 5/64"
- Second Ring Groove: 5/64"
- Oil Ring Groove Width: 3/16"
- Full Length: N/A
- Pin Size: 0.9842" O.D. (24.998mm)
- Pin Type: N/A
- Skirt Type: Non-Coated
- Piston Skirt Clearance: N/A
- Notes: Use Piston Ring p/n 844-E251X30 Standard Set; p/n 844-E251K30 Premium Set (Rings Not Included)
Part TypePiston
BrandSEALED POWER
Package Height4.4
Package Width9.5
Package Length18.4
Weight14.25 PG
Part CategoryReplacement Parts
QuantitySet of 8
Vendor Part Number405P30
Package Qty1
Package TypeEA
No Questions
No Reviews
