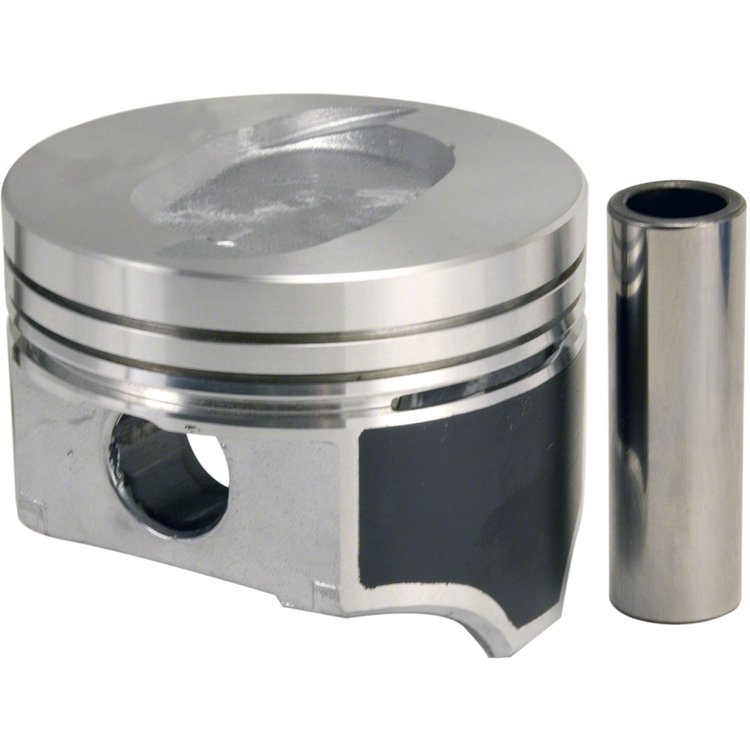

Pistons Ford 429ci V8 +030

Name: Pistons Ford 429ci V8 +030
Brand: SEALED POWER
SKU: 844-413AP30
Price: 677.87 USD
Availability: InStock

^$677⁸⁷

Ships on 09/23/2026

Lowest Price Guarantee

Ford Pistons

Ford 429ci V8 1968-1973
4.3900" Bore (+.030")
Oblong Recessed Head
Set of 8

Features:
Cast with FM132 Eutectic Proprietary Alloy
Performance & Dependability of Original Equipment Pistons
High Quality Aluminum
Utilizes ISO & QS Certified Manufacturing
Meets or Exceeds OEM Specifications

Technical Specs:
Material: Cast Aluminum
Bore: 4.3900' (111.5060mm)
Piston Top: Oblong Recessed Head, 0.120" Deep - 8.0:1 Comp Ratio
Compression Height: 1.883"
Compression Ring Groove: 5/64"
Second Ring Groove: 5/64"
Oil Ring Groove Width: 3/16"
Full Length: N/A
Pin Size: 1.0402" O.D. (26.421mm)
Pin Type: N/A
Pin Offset: 0.06" (1.524mm)
Skirt Type: N/A
Piston Skirt Clearance: N/A
Notes: Use Piston Ring p/n 844-E296X30 Standard Set; p/n 844-E296K30 Premium Set (Rings Not Included)

The value of Speed-Pro's line of cast aluminum pistons are hard to beat for budget or stock-style rebuilds. They are made from high-quality aluminum alloys and feature a carefully controlled casting, heat-treating, and CNC-machining process. And, because they're designed and manufactured to exceed OEM specs, they'll provide improved reliability, performance, and a long service life.

Part TypePiston

Product LineSpeed-Pro Cast Pistons

BrandSEALED POWER

Package Height5.2

Package Width10.4

Package Length20.9

Weight19.1 PG

Part CategoryReplacement Parts

QuantitySet of 8

Vendor Part Number413AP30

Package Qty1

Package TypeEA
