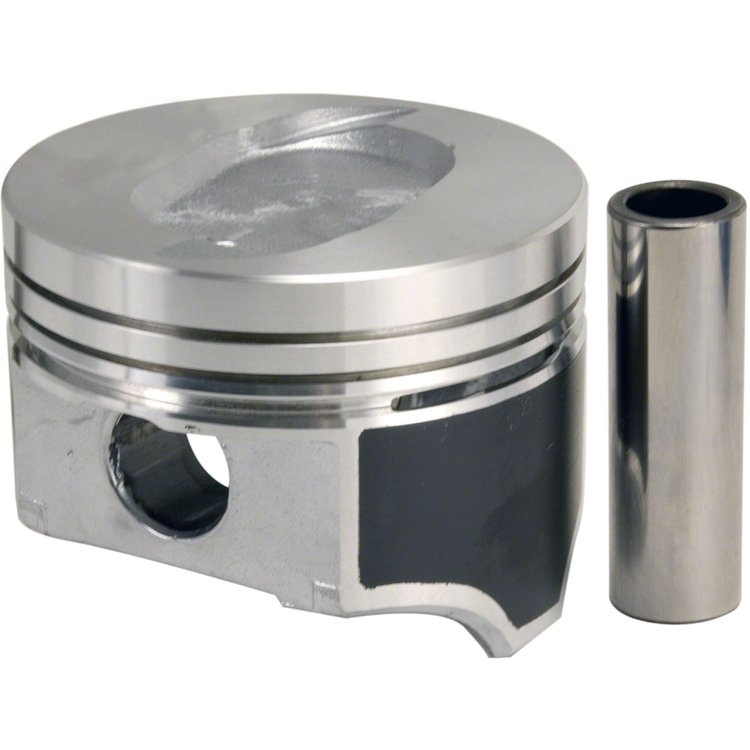

Pistons Ford 429ci V8 +040

Name: Pistons Ford 429ci V8 +040
Brand: SEALED POWER
SKU: 844-413AP40
Price: 403.78 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford Pistons

Ford 429ci V8 1968-1973
4.4000" Bore (+.040")
Oblong Recessed Head
Set of 8

Features:
Cast with FM132 Eutectic Proprietary Alloy
Performance & Dependability of Original Equipment Pistons
High Quality Aluminum
Utilizes ISO & QS Certified Manufacturing
Meets or Exceeds OEM Specifications

Technical Specs:
Material: Cast Aluminum
Bore: 4.4000' (111.7600mm)
Piston Top: Oblong Recessed Head, 0.120" Deep - 8.0:1 Comp Ratio
Compression Height: 1.883"
Compression Ring Groove: 5/64"
Second Ring Groove: 5/64"
Oil Ring Groove Width: 3/16"
Full Length: N/A
Pin Size: 1.0402" O.D. (26.421mm)
Pin Type: N/A
Pin Offset: 0.06" (1.524mm)
Skirt Type: N/A
Piston Skirt Clearance: N/A
Notes: Use Piston Ring p/n 844-E296X40 Standard Set; p/n 844-E296K40 Premium Set (Rings Not Included)
