Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

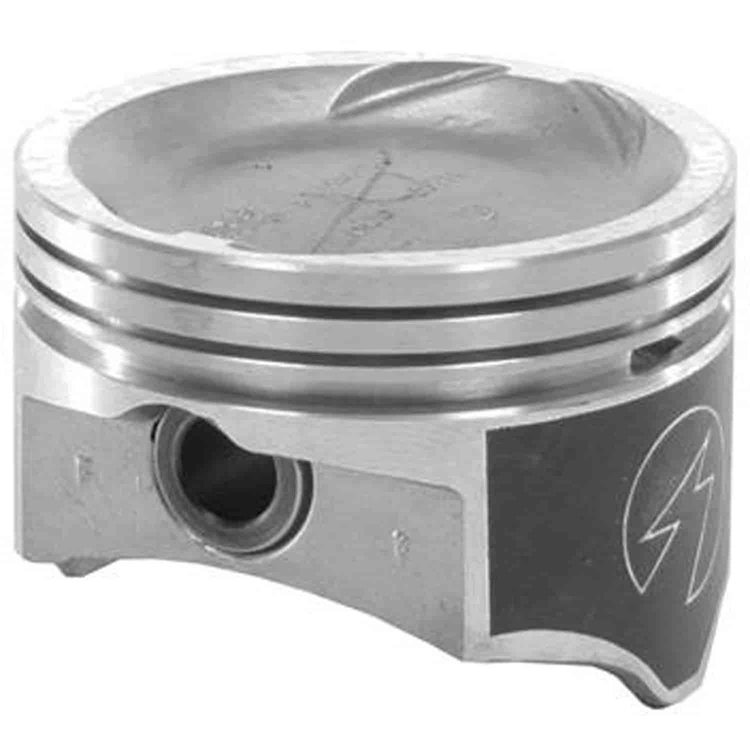

AMC Pistons
- Cast Piston
- AMC/Jeep 401ci 6.6L V8 1971-1978
- 4.165" Bore (Standard)
- Dish Top w/4 Valve Reliefs
- DUROSHIELD Coated Skirt
- 1/pkg.
Technical Specs: - Material: Cast Aluminum
- Bore: 4.165' (105.79mm)
- Piston Top: Dish Top w/4 Valve Reliefs, 0.325" Deep x 3.530" Diameter
- Compression Height: 1.488"
- Compression Ring Groove: 5/64"
- Second Ring Groove: 5/64"
- Oil Ring Groove Width: 3/16"
- Full Length: N/A
- Pin Size: 1.0007" O.D. (25.417mm)
- Pin Type: Press-Fit
- Skirt Type: DUROSHIELD Coated
- Piston Skirt Clearance: N/A
- Notes: Use Piston Ring p/n 844-E302X Standard Set; p/n 844-E302K Premium Set (Rings Not Included)
Part TypePiston
BrandSEALED POWER
Package Width1.59
Weight1.59 PG
Part CategoryReplacement Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
