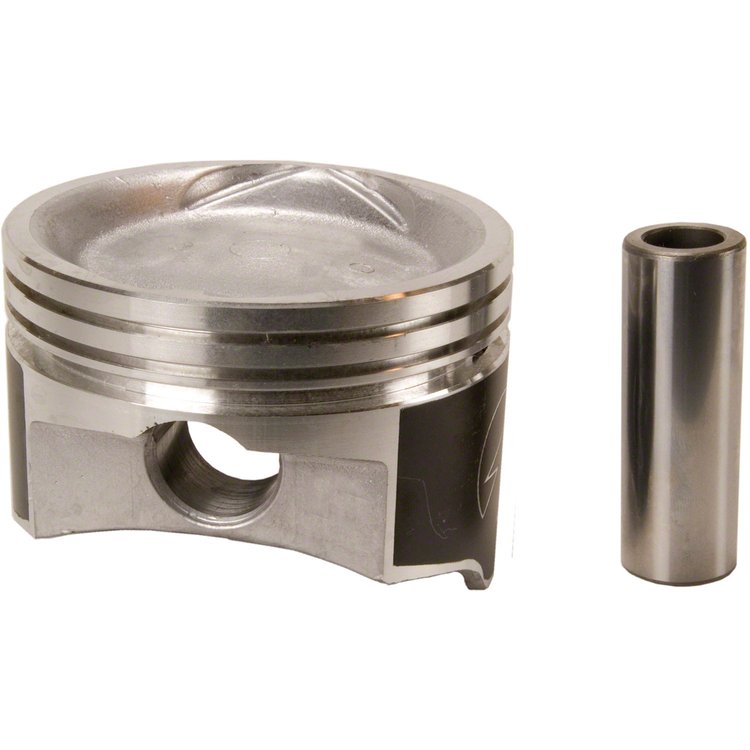

AMC Pistons
- Cast Piston
- AMC/Jeep 401ci 6.6L V8 1971-1978
- 4.225" Bore (+.060")
- Dish Top w/4 Valve Reliefs
- DUROSHIELD Coated Skirt
- 1/pkg.
Technical Specs: - Material: Cast Aluminum
- Bore: 4.225' (107.315mm)
- Piston Top: Dish Top w/4 Valve Reliefs, 0.325" Deep x 3.530" Diameter
- Compression Height: 1.488"
- Compression Ring Groove: 5/64"
- Second Ring Groove: 5/64"
- Oil Ring Groove Width: 3/16"
- Full Length: N/A
- Pin Size: 1.0007" O.D. (25.417mm)
- Pin Type: Press-Fit
- Skirt Type: DUROSHIELD Coated
- Piston Skirt Clearance: N/A
- Notes: Piston Rings Not Included
Part TypePiston
BrandSEALED POWER
Package Height5.0
Package Width11.0
Package Length21.0
Weight1.59 PG
Part CategoryReplacement Parts
QuantitySet of 8
Vendor Part Number415CP60
Package Qty1
Package TypeEA
