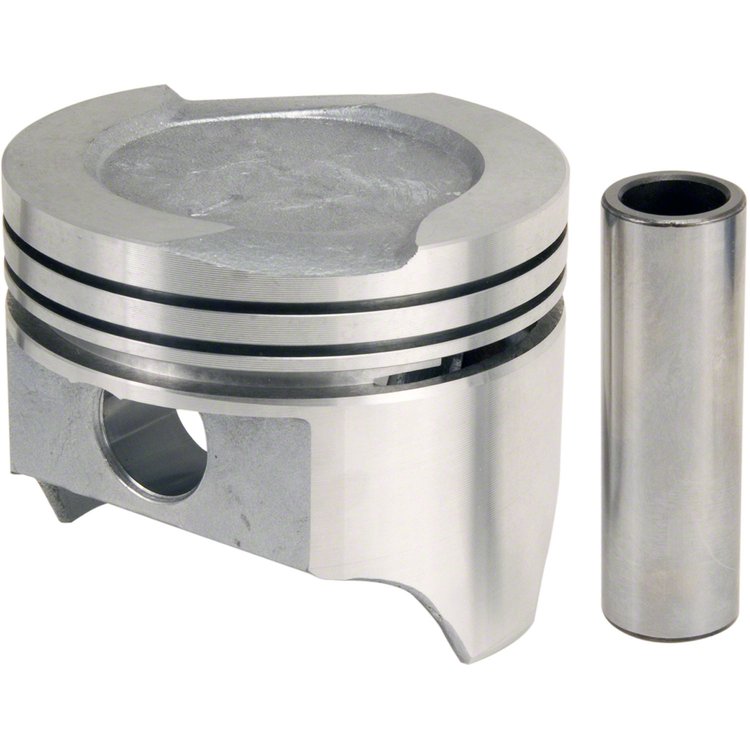

Pistons Ford 400ci V8 +030

Name: Pistons Ford 400ci V8 +030
Brand: SEALED POWER
SKU: 844-427NP30
Price: 186.99 USD
Availability: InStock

^$186⁹⁹

Ships on 09/23/2026

Lowest Price Guarantee

Ford Pistons

Ford 400ci V8 1971-1980
4.030" Bore (+.030")
Recessed Head w/2 Valve Reliefs
Set of 8

Features:
Cast with FM132 Eutectic Proprietary Alloy
Performance & Dependability of Original Equipment Pistons
High Quality Aluminum
Utilizes ISO & QS Certified Manufacturing
Meets or Exceeds OEM Specifications

Technical Specs:
Material: Cast Aluminum
Bore: 4.030' (102.362mm)
Piston Top: Recessed Head w/2 Valve Reliefs, 0.145" Deep x 3.000" Diameter - 7.9:1 Compression Ratio
Compression Height: 1.630"
Compression Ring Groove: 5/64"
Second Ring Groove: 5/64"
Oil Ring Groove Width: 3/16"
Full Length: N/A
Pin Size: 0.9751" O.D. (24.768mm)
Pin Type: N/A
Pin Offset: 0.06" (1.524mm)
Skirt Type: N/A
Piston Skirt Clearance: N/A
Notes: Use Piston Ring p/n 844-E251X30 Standard Set; p/n 844-E251K30 Premium Moly Set; p/n 844-E251KC30 Premium Chrome Set (Rings Not Included)
