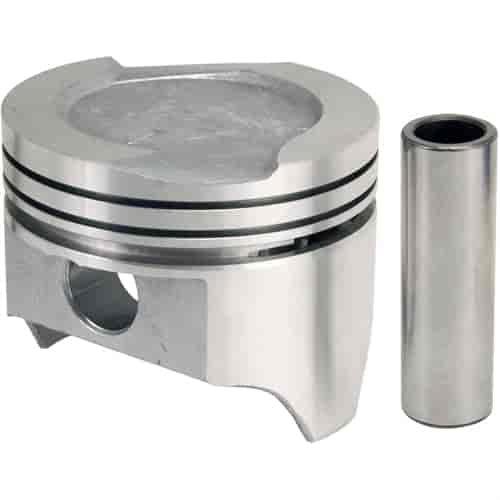

Piston Ford 400ci V8 +040

Name: Piston Ford 400ci V8 +040
Brand: SEALED POWER
SKU: 844-427NP40-1
Price: 12.49 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford Pistons

Ford 400ci V8 1971-1980
4.040" Bore (+.040")
Recessed Head w/2 Valve Reliefs
1/pkg.

Features:
Cast with FM132 Eutectic Proprietary Alloy
Performance & Dependability of Original Equipment Pistons
High Quality Aluminum
Utilizes ISO & QS Certified Manufacturing
Meets or Exceeds OEM Specifications

Technical Specs:
Material: Cast Aluminum
Bore: 4.040' (102.616mm)
Piston Top: Recessed Head w/2 Valve Reliefs, 0.145" Deep x 3.000" Diameter - 7.9:1 Compression Ratio
Compression Height: 1.630"
Compression Ring Groove: 5/64"
Second Ring Groove: 5/64"
Oil Ring Groove Width: 3/16"
Full Length: N/A
Pin Size: 0.9751" O.D. (24.768mm)
Pin Type: N/A
Pin Offset: 0.06" (1.524mm)
Skirt Type: N/A
Piston Skirt Clearance: N/A
Notes: Use Piston Ring p/n 844-E251X40 Standard Set; p/n 844-E251K40 Premium Moly Set; p/n 844-E251KC40 Premium Chrome Set (Rings Not Included)
