Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

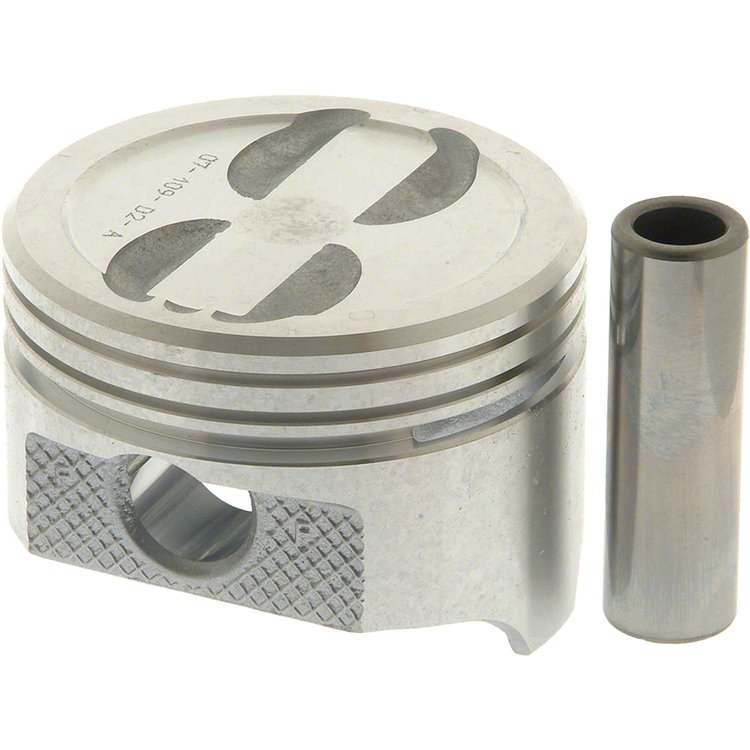

Ford Pistons
- Cast Pistons
- Ford 5.0L 302ci V8 1987-1992
- 4.060" Bore (+.060")
- Recessed Head w/4 Valve Reliefs
- Set of 8
Features: - Performance & Dependability of Original Equipment Pistons
- Duroshield Skirt-Coated Piston
- Moly-Graphite Coating Extends Engine Life
- Reduces Friction for Higher Fuel Economy & Eliminates Scuffing and Wear
- Helps Improve Cylinder Sealing for Less Blow-by
- Prevents Damage from Inadequate Lubrication on Start-up
Technical Specs: - Material: Cast Aluminum
- Bore: 4.060' (103.124mm)
- Piston Top: Recessed Head, 0.032" Deep x 2.500" Diameter
- Compression Height: 1.599"
- Compression Ring Groove: 1.5mm
- Second Ring Groove: 1.5mm
- Oil Ring Groove Width: 4.0mm
- Full Length: N/A
- Pin Size: 0.9122" O.D. (23.170mm)
- Pin Type: N/A
- Pin Offset: 0.06" (1.524mm)
- Skirt Type: Duroshield skirt-coated
- Piston Skirt Clearance: N/A
Part TypePiston
BrandSEALED POWER
Package Height5.0
Package Width11.0
Package Length21.0
Weight1.68 PG
Part CategoryReplacement Parts
QuantitySet of 8
Vendor Part Number517CP60
Package Qty1
Package TypeEA
