Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy LS

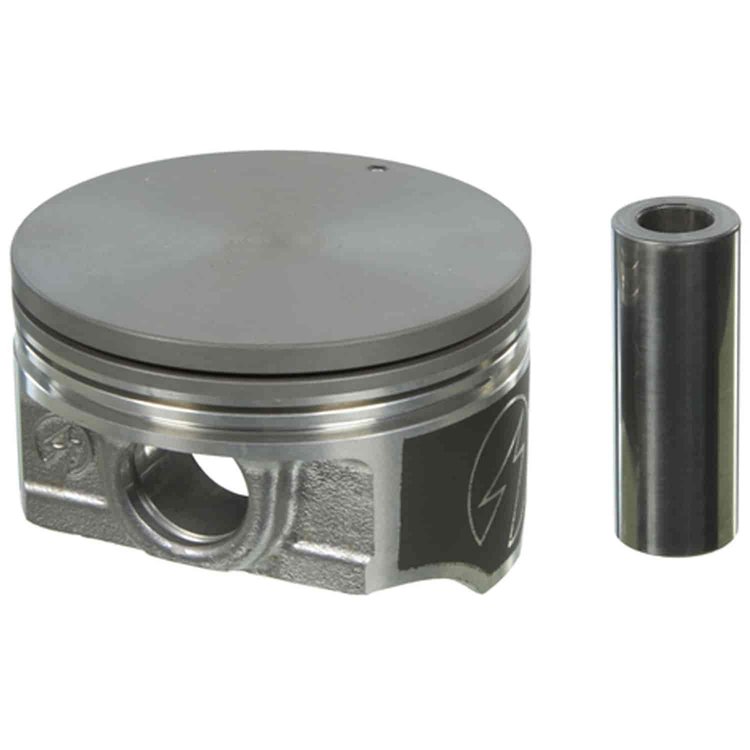

- Hypereutectic Pistons
- GM 4.8L / 5.3L LS 2004-2016
- 3.8194" (+.0394") / 97.0127mm (+1.00mm) Bore
- Flat Top
- Set of 8
Technical Specs: - Material: Hypereutectic
- Bore: 3.8194' (97.0127mm)
- Piston Top: Flat Top
- Compression Height: 1.325"
- Rod Length: 6.275" (4.8L); 6.098" (5.3L)
- Stroke: 3.268" (4.8L); 3.622" (5.3L)
- Compression Ring Groove: 1.5mm
- Second Ring Groove: 1.5mm
- Oil Ring Groove Width: 3.0mm
- Full Length: N/A
- Pin Size: 0.943" O.D. (23.952mm)
- Pin Type: Press-fit or floating (2005-2009)
- Skirt Type: DUROSHIELD Coated
- Piston Skirt Clearance: N/A
- Notes: Use Piston Ring p/n 844-E937K100MM Premium Set (Rings Not Included)
Part TypePiston
BrandSEALED POWER
Package Height4.6
Package Width9.5
Package Length18.3
Weight1.4562 PG
Part CategoryPerformance Parts
QuantitySet of 8
Vendor Part NumberH1132CPA100MM
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
