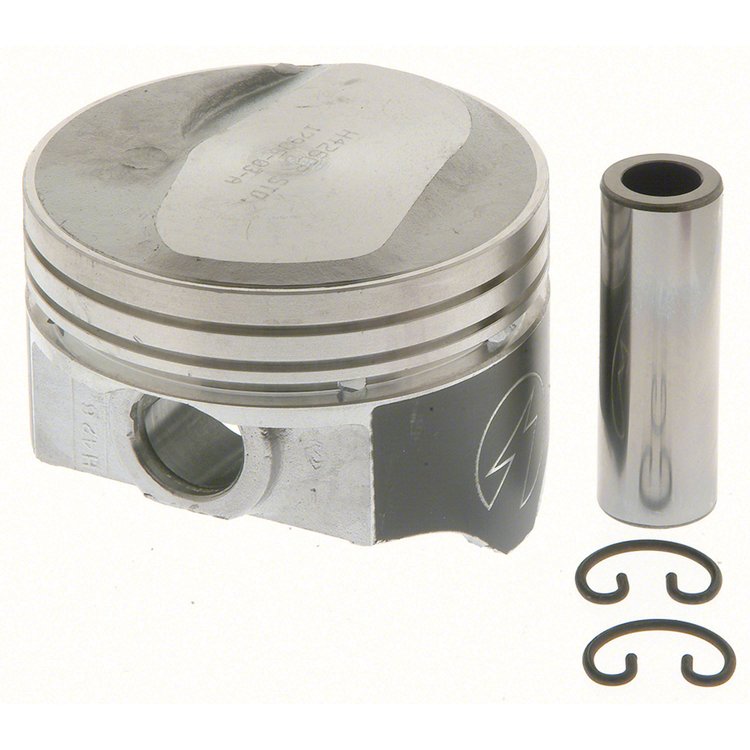

Hypereutectic Pistons Chevy 502ci +030
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- Hypereutectic Piston s
- Big Block Chevy 502ci
- 4.496" Bore (+.030")
- 6.2cc Dome Top w/1 Valve Relief
- Set of 8
Technical Specs: - Material: Hypereutectic FM-425 Alloy
- Bore: 4.496' (114.19mm)
- Piston Top: 6.2cc (.100")Dome Top w/1 Valve Relief
- Compression Height: 1.645"
- Compression Ring Groove: 2.00mm
- Second Ring Groove: 1.50mm
- Oil Ring Groove Width: 4.00mm
- Full Length: N/A
- Pin Size: 0.990" O.D. (25.146mm)
- Pin Type: Floater (175 grams)
- Skirt Type: DUROSHIELD Coated
- Piston Skirt Clearance: 0.0015
- Notes: Weight w/Pin-948 Grams; Rings Not Included
Add Strength and Power to Your Pistons
Sealed Power Hypereutectic Pistons are built to exacting tolerances and feature an aluminum casting with an anti-friction skirt coating that is highly resistant to scuffing and wear. The Duroshield skirt helps improve fuel economy, doesn't require any additional clearance, extends piston life, and increases horsepower with less friction. These durable pistons operate with tight bore clearances and work perfectly with normal-range ring end gaps, making them great for street, bracket racing, and oval track applications.
