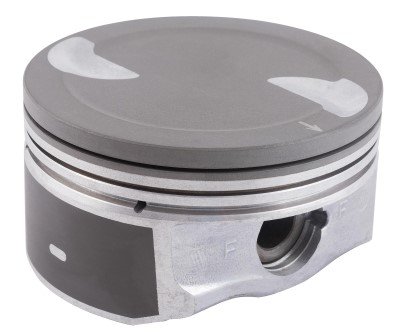

Hypereutectic Pistons for 2003-2019 GM LS 6.0L V8 +.030 in. (.75 mm)

Vehicle Info Needed

SEALED POWERPART NUMBER: 844-H1505CPA75MM

Hypereutectic Pistons for 2003-2019 GM LS 6.0L V8 +.030 in. (.75 mm)

Name: Hypereutectic Pistons for 2003-2019 GM LS 6.0L V8 +.030 in. (.75 mm)
Brand: SEALED POWER
SKU: 844-H1505CPA75MM
Price: 606.28 USD
Availability: InStock

^$606²⁸

Ships on 09/29/2026

Lowest Price Guarantee

Chevy LS

Hypereutectic Pistons

2003-2019 GM LS 6.0L V8

4.030 in. (102.362 mm) Bore

Dish w/ 2 Valve Reliefs

Set of 8

Sealed Power H1505CPA 75MM Hypereutectic Pistons:

Piston Material: Hypereutectic Aluminum
Bore Diameter: 4.030 in. (102.362 mm)
Oversized: Yes
Top Compression Ring Thickness: 1.2 mm
Second Compression Ring Thickness: 1.5 mm
Oil Ring Thickness: 2.5 mm
Piston Pin Outside Diameter: 0.943 in.
Compression Height: 1.325 in.
Head Type: Dish w/2 valve reliefs

Part TypePiston

BrandSEALED POWER

Package Height4.4

Package Width9.3

Package Length18.5

Weight12.6 PG

Part CategoryPerformance Parts

Piston Ring Thickness (In.)1.20mm x 1.50mm x 2.50mm

Wrist Pin StylePress-fit

QuantitySet of 8

Piston MaterialHypereutectic aluminum

Bore (Mm)102.362

Piston StyleDish, with two valve reliefs

Bore4.030

Vendor Part NumberH1505CPA75MM

Package Qty1

Package TypeEA
