Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

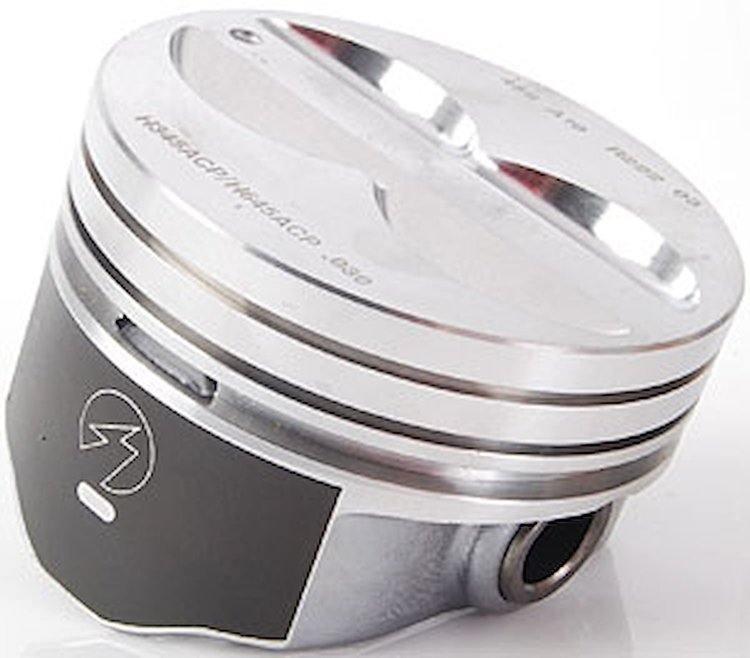

Small Block Chevy
- DDP Hypereutectic Pistons
- 350 Small Block Chevy
- Flat Top 4 Valve Reliefs
- Volume -6.88
- Press or Floating Pin Design
- 676 Grams
- 5/64-5/64-3/16 Ring lands
- 9.35:1 w/64cc
- 4.000 Bore
- Set of 8
Note: For floating pin applications, lock ring number 844-LR63 must be purchased separately, 2 required for each piston.
Part TypePiston
BrandSEALED POWER
Package Height4.3
Package Width9.4
Package Length18.7
Weight13.35 PG
Part CategoryPerformance Parts
Piston Head Volume (Cc)5
Compression Distance1.548 in (39.319 mm)
Piston Ring Thickness (In.)5/64 x 5/64 x 3/16
Wrist Pin StylePress-fit
QuantitySet of 8
Piston MaterialHypereutectic aluminum
Pin Diameter0.928 in (23.6 mm)
Part FitmentSemi Universal
Bore (Mm)101.6
Piston StyleFlat top, with four valve reliefs
Bore4 in (101.6 mm)
Vendor Part NumberH345DCP
Package Qty1
Package TypeEA
