Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Small Block Chevy

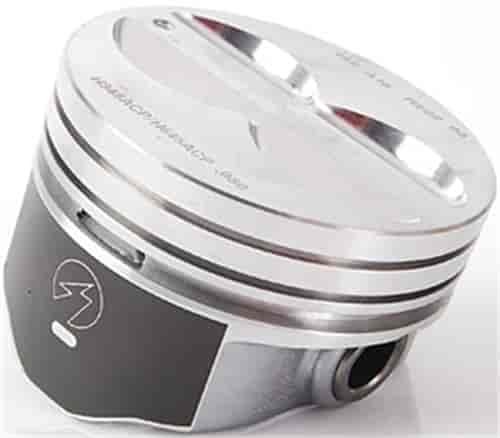

- DDP Piston
- 350 SB-Chevy Flat Top Piston 4 Valve Reliefs
- Dome Volume -6.88
- Press or Floating Pin Design
- 676 Grams
- 5/64-5/64-3/16 Ring lands
- 9.35:1 w/64cc
- 4.030 Bore
- Each
Note: For floating pin applications, lock ring number 844-LR63 must be purchased separately, 2 required for each piston.
Part TypePiston
BrandSEALED POWER
Package Height5.3
Package Width5.8
Package Length5.9
Weight1.75 PG
Part CategoryPerformance Parts
Piston Head Volume (Cc)5
Compression Distance1.548 in (39.319 mm)
Piston Ring Thickness (In.)5/64 x 5/64 x 3/16
Wrist Pin StylePress-fit
QuantitySold as a set of 8
Piston MaterialHypereutectic aluminum
Pin Diameter0.928 in (23.6 mm)
Bore (Mm)102.362
Piston StyleFlat top, with four valve reliefs
Bore4.03 in (102.362 mm)
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
