Made in USA

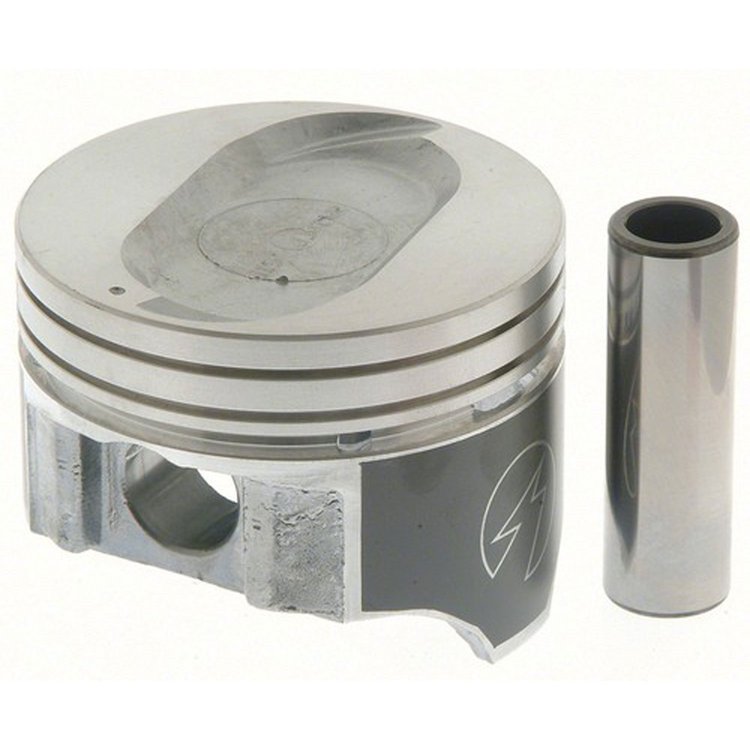

Hypereutectic Pistons Big Block Ford 460ci V8 +030
InfoVehicle Info Needed
SEALED POWERPART NUMBER: 844-H418CP30

Hypereutectic Pistons Big Block Ford 460ci V8 +030

$37585
ShippingShips on 09/21/2026
Lowest PriceLowest Price Guarantee

Big Block Ford
    Hypereutectic Pistons
  • 1968-1987 Big Block Ford 460ci 7.5L V8
  • Bore: 4.390" (+.030")
  • -21cc Oval Dish Top, 0.240" Deep
  • Ring Grooves: 5/64", 5/64", 3/16"
  • Set of 8

    Technical Specs:
  • Material: Hypereutectic
  • Bore: 4.390' (111.506mm)
  • Piston Top: -21cc Oval Dish Top, 0.240" Deep
  • Compression Height: 1.752"
  • Rod Length: 6.605"
  • Stroke: 3.850"
  • Compression Ring Groove: 5/64"
  • Second Ring Groove: 5/64"
  • Oil Ring Groove Width: 3/16"
  • Full Length: N/A
  • Pin Size: 1.0402" O.D. (26.421mm)
  • Pin Type: Press-Fit
  • Skirt Type: DUROSHIELD Coated
  • Piston Skirt Clearance: N/A
  • Notes: Use Piston Ring p/n 844-E296X30 Standard Set; p/n 844-E296K30 Premium Set (Rings Not Included)

    Add Strength and Power to Your Pistons

    Sealed Power Hypereutectic Pistons are built to exacting tolerances and feature an aluminum casting with an anti-friction skirt coating that is highly resistant to scuffing and wear. The Duroshield skirt helps improve fuel economy, doesn't require any additional clearance, extends piston life, and increases horsepower with less friction. These durable pistons operate with tight bore clearances and work perfectly with normal-range ring end gaps, making them great for street, bracket racing, and oval track applications.

Part TypePiston
Product LineSealed Power Hypereutectic Pistons
BrandSEALED POWER
Package Height5.1
Package Width10.4
Package Length20.4
Weight19.0 PG
Part CategoryPerformance Parts
QuantitySet of 8
Part FitmentSemi Universal
Vendor Part NumberH418CP30
Package Qty1
Package TypeEA
No Questions
No Reviews

Items You Need

RING SET CAST 4.360+30

SEALED POWER

RING SET CAST 4.360+30

Part Number : 844-E296X30
$11998
Moly Piston Ring Set Oversize: .030"

SEALED POWER

Moly Piston Ring Set Oversize: .030"

Part Number : 844-E296K30
$8789$109.99
You Save$22.10
Some parts are not legal for use in California or other states with similar laws / regulations
p65 warning
