Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

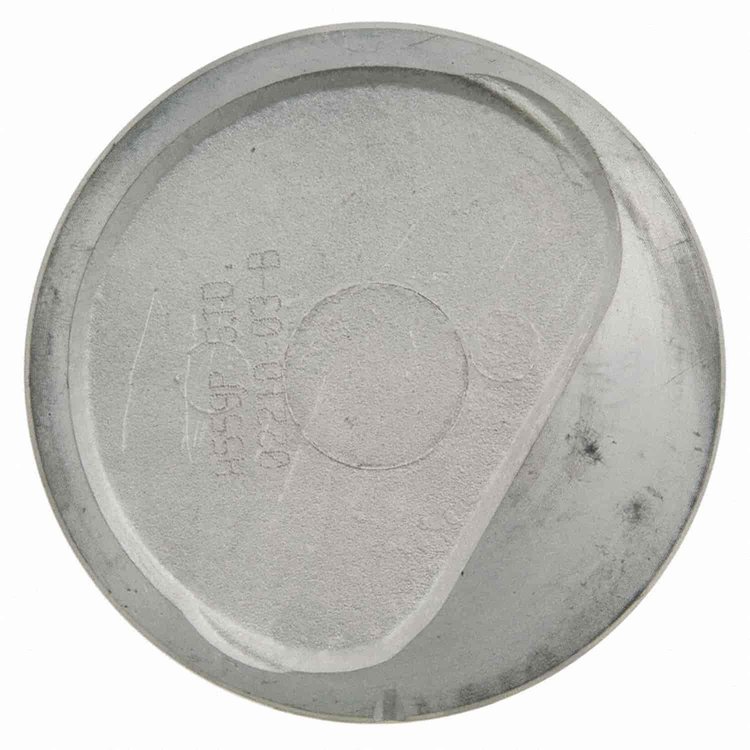

Ford Pistons
- Cast Piston
- Ford 140ci 2.3L SOHC Turbo 8-Valve L4 1983-1989
- 3.7795" / 96.000mm Bore (Standard)
- Dish Top w/ Offset D-Shape, .095" Deep
- 1/pkg.
Technical Specs: - Material: Hypereutectic
- Bore: 3.7795' (96.000mm)
- Piston Top: Dish Top with Offset D-Shape, 0.095" Deep
- Compression Height: 1.577"
- Compression Ring Groove: 2.0mm
- Second Ring Groove: 2.0mm
- Oil Ring Groove Width: 4.76mm
- Full Length: N/A
- Pin Size: 0.9122" O.D. (23.17mm)
- Pin Type: N/A
- Skirt Type: Non-Coated
- Piston Skirt Clearance: .0015 @ 2.250 from top of head
- Notes: Use Piston Ring p/n 844-E441K Premium Set (Rings Not Included)
Part TypePiston
BrandSEALED POWER
Package Height3.9
Package Width4.2
Package Length5.5
Weight1.36 PG
Part CategoryReplacement Parts
QuantitySet of 4
Vendor Part NumberH559P
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
