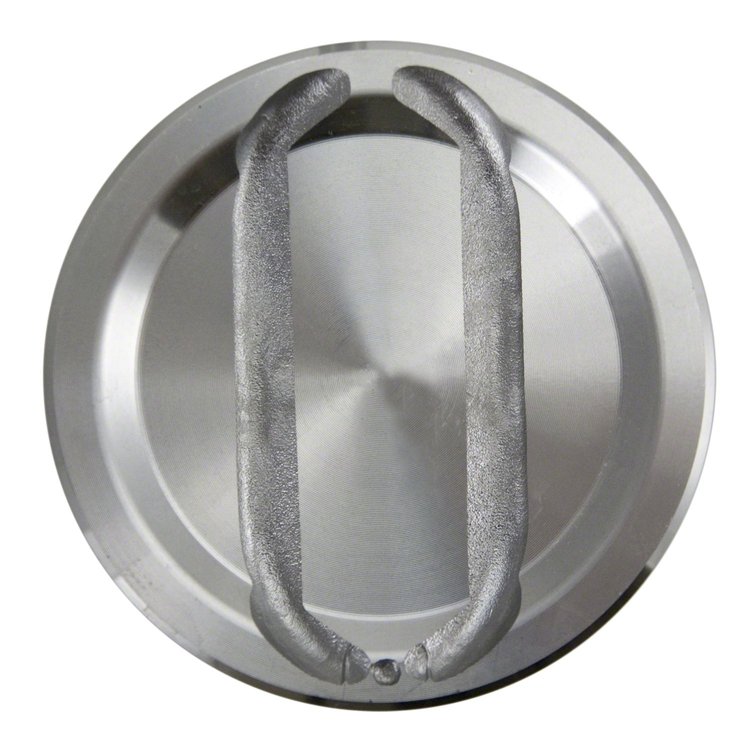

Hypereutectic Pistons 1991-1995 Small Block Chevy 350 ci / 5.7L [4.000 in. Bore Standard]
InfoVehicle Info Needed
SEALED POWERPART NUMBER: 844-H580CP

Hypereutectic Pistons 1991-1995 Small Block Chevy 350 ci / 5.7L [4.000 in. Bore Standard]

$15699
ShippingShips on 09/29/2026
Lowest PriceLowest Price Guarantee

Small Block Chevy
    Hypereutectic Pistons
  • 1991-1995 Small Block Chevy 350 ci / 5.7L
  • 4.000 in. Bore (Standard Size)
  • 5.700 in. Rod
  • .185 in. Dish w/ 2 Valve Reliefs
  • 5/64, 5/64, 3/16 in. Ring Sizes
  • Set of 8

    Technical Specs:
  • Material: Cast Aluminum
  • Bore: 4.000" Bore (Standard)
  • Piston Top: Recessed Head .185" deep x 3.300" diameter w/2 valve Reliefs
  • Compression Height: 1.550"
  • Compression Ring Groove: 5/64"
  • Second Ring Groove: 5/64"
  • Oil Ring Groove Width: 3/16"
  • Full Length: N/A
  • Pin Size: 0.9275" O.D.
  • Pin Type: N/
  • Skirt Type: Coated
  • Piston Skirt Clearance: N/A
    Notes
  • Used in G30/P30/G3500/P3500 1 ton vans

    Add Strength and Power to Your Pistons

    Sealed Power Hypereutectic Pistons are built to exacting tolerances and feature an aluminum casting with an anti-friction skirt coating that is highly resistant to scuffing and wear. The Duroshield skirt helps improve fuel economy, doesn't require any additional clearance, extends piston life, and increases horsepower with less friction. These durable pistons operate with tight bore clearances and work perfectly with normal-range ring end gaps, making them great for street, bracket racing, and oval track applications.

Part TypePiston
Product LineSealed Power Hypereutectic Pistons
BrandSEALED POWER
Package Height3.9
Package Width4.2
Package Length4.7
Weight1.55 PG
Part CategoryPerformance Parts
QuantitySet of 8
Part FitmentSemi Universal
Vendor Part NumberH580CP
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
