Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Small Block Ford

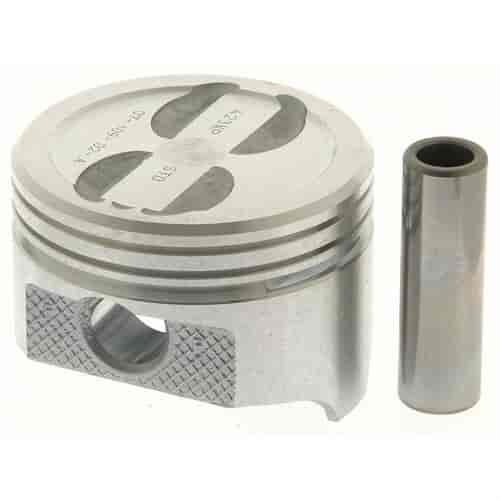

- Hypereutectic Piston
- 1977-1995 Ford 302 ci 5.0L Windsor
- 4.000 in. Bore (Standard)
- -4.0 cc Dish Top w/4 Valve Reliefs
- 5/64, 5/64, 3/16 in. Ring Widths
- Sold Individually
Technical Specs: - Material: Hypereutectic
- Bore: 4.000' (101.60mm)
- Piston Top: -4.0cc Dish Top w/4 Valve Reliefs, 0.030" Deep x 2.500" Diameter Dish
- Compression Height: 1.599"
- Rod Length: 5.090
- Stroke: 3.000"
- Compression Ring Groove: 5/64"
- Second Ring Groove: 5/64"
- Oil Ring Groove Width: 3/16"
- Full Length: N/A
- Pin Size: 0.9122" O.D. (23.169mm)
- Pin Type: Press-Fit
- Skirt Type: DUROSHIELD Coated
- Piston Skirt Clearance: N/A
- Notes: Use Piston Ring p/n 844-E251X Standard Set; p/n 844-E251K Premium Moly Set; p/n 844-E251KC Premium Chrome Set; p/n 844-R9903 STD Plasma-Moly Performance Set (Rings Not Included).
Part TypePiston
BrandSEALED POWER
Package Height3.0
Package Width4.0
Package Length4.0
Weight1.5 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
