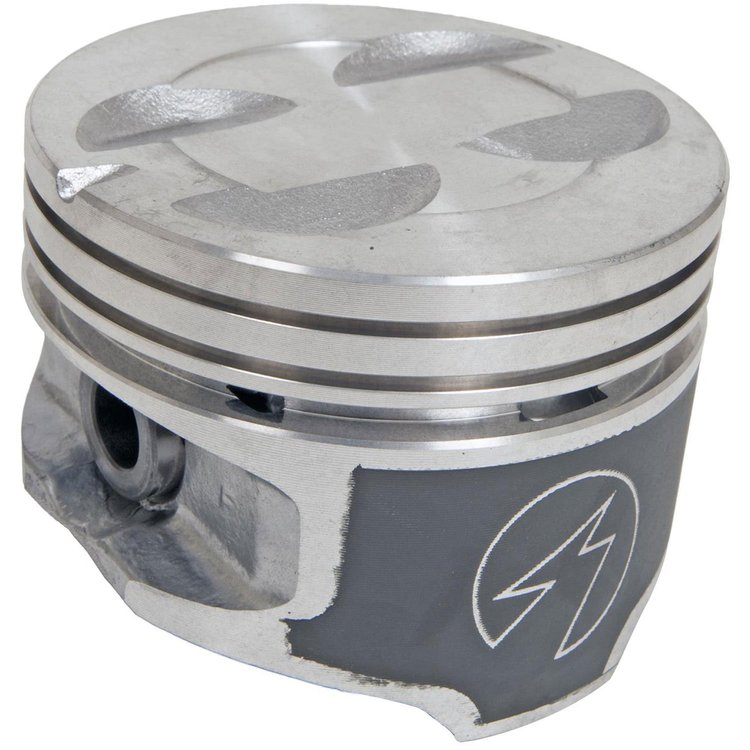

Hypereutectic Pistons
InfoVehicle Info Needed
SEALED POWERPART NUMBER: 844-H654CP

Hypereutectic Pistons

$18099
1 left in stock
ShippingShips on Nov 02, 2026
Lowest PriceLowest Price Guarantee

Small Block Ford
    Hypereutectic Pistons
  • 1977-1995 Ford 302 ci 5.0L Windsor
  • 4.000 in. Bore (Standard)
  • -4.0 cc Dish Top w/4 Valve Reliefs
  • 5/64, 5/64, 3/16 in. Ring Widths
  • Set of 8

    Technical Specs:
  • Material: Hypereutectic
  • Bore: 4.000' (101.60mm)
  • Piston Top: -4.0cc Dish Top w/4 Valve Reliefs, 0.030" Deep x 2.500" Diameter Dish
  • Compression Height: 1.599"
  • Rod Length: 5.090
  • Stroke: 3.000"
  • Compression Ring Groove: 5/64"
  • Second Ring Groove: 5/64"
  • Oil Ring Groove Width: 3/16"
  • Full Length: N/A
  • Pin Size: 0.9122" O.D. (23.169mm)
  • Pin Type: Press-Fit
  • Skirt Type: DUROSHIELD Coated
  • Piston Skirt Clearance: N/A
  • Notes: Use Piston Ring p/n 844-E251X Standard Set; p/n 844-E251K Premium Moly Set; p/n 844-E251KC Premium Chrome Set; p/n 844-R9903 STD Plasma-Moly Performance Set (Rings Not Included).

    Add Strength and Power to Your Pistons

    Sealed Power Hypereutectic Pistons are built to exacting tolerances and feature an aluminum casting with an anti-friction skirt coating that is highly resistant to scuffing and wear. The Duroshield skirt helps improve fuel economy, doesn't require any additional clearance, extends piston life, and increases horsepower with less friction. These durable pistons operate with tight bore clearances and work perfectly with normal-range ring end gaps, making them great for street, bracket racing, and oval track applications.

Part TypePiston
Product LineSealed Power Hypereutectic Pistons
BrandSEALED POWER
Package Height4.4
Package Width9.5
Package Length18.5
Weight13.65 PG
Part CategoryPerformance Parts
QuantitySet of 8
Part FitmentSemi Universal
Vendor Part NumberH654CP
Package Qty1
Package TypeEA
