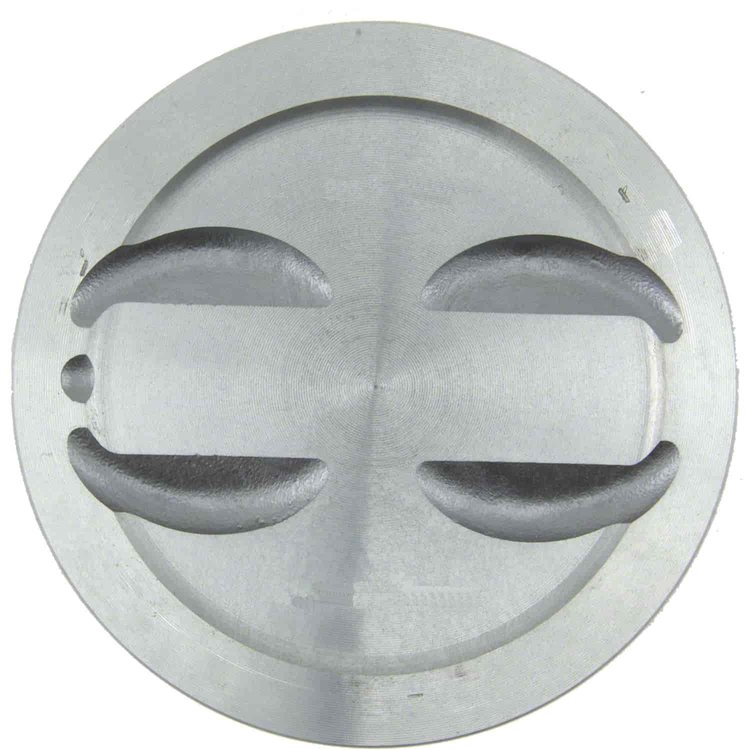

Hypereutectic Pistons
InfoVehicle Info Needed
SEALED POWERPART NUMBER: 844-H654CP30

Hypereutectic Pistons

$20038
ShippingShips on 11/25/2026
Lowest PriceLowest Price Guarantee

Items You Need

Moly Piston Ring Set Oversize: .030"

SEALED POWER

Moly Piston Ring Set Oversize: .030"

Part Number : 844-E251K30
$6995
Premium Piston Ring Set 1958-97 GM 4.7L/5.0L5.3L/5.7L/5.8L/6.6L

SEALED POWER

Premium Piston Ring Set 1958-97 GM 4.7L/5.0L5.3L/5.7L/5.8L/6.6L

Part Number : 844-E251KC30
$7966
Cast Piston Ring Set Oversize: .030"

SEALED POWER

Cast Piston Ring Set Oversize: .030"

Part Number : 844-E251X30
$5090

Small Block Ford
Hypereutectic Pistons
  • 1977-1995 Ford 302 ci 5.0L Windsor
  • 4.030 in. Bore (+.030)
  • -4.0 cc Dish Top w/4 Valve Reliefs
  • 5/64, 5/64, 3/16 in. Ring Widths
  • Set of 8

    Technical Specs:

    • Material: Hypereutectic
    • Bore: 4.030 in.
    • Piston Top: -4.0cc Dish Top w/4 Valve Reliefs, 0.030 in. Deep x 2.500 in. Diameter Dish
    • Compression Height: 1.599 in.
    • Rod Length: 5.090 in.
    • Stroke: 3.000 in.
    • Compression Ring Groove: 5/64 in.
    • Second Ring Groove: 5/64 in.
    • Oil Ring Groove Width: 3/16 in.
    • Full Length: N/A
    • Pin Size: 0.9122 in. O.D. (23.169 mm)
    • Pin Type: Press-Fit
    • Skirt Type: DUROSHIELD Coated
    • Piston Skirt Clearance: N/A
    • Notes: Use Piston Ring p/n 844-E251X30 Standard Set; p/n 844-E251K30 Premium Moly Set; p/n 844-E251KC30 Premium Chrome Set; p/n 844-R9903.030 Plasma-Moly Performance Set (Rings Not Included).
    • Add Strength and Power to Your Pistons

      Sealed Power Hypereutectic Pistons are built to exacting tolerances and feature an aluminum casting with an anti-friction skirt coating that is highly resistant to scuffing and wear. The Duroshield skirt helps improve fuel economy, doesn't require any additional clearance, extends piston life, and increases horsepower with less friction. These durable pistons operate with tight bore clearances and work perfectly with normal-range ring end gaps, making them great for street, bracket racing, and oval track applications.

    Part TypePiston
    Product LineSealed Power Hypereutectic Pistons
    BrandSEALED POWER
    Package Height4.4
    Package Width9.6
    Package Length18.4
    Weight13.95 PG
    Part CategoryPerformance Parts
    QuantitySet of 8
    Vendor Part NumberH654CP30
    Package Qty1
    Package TypeEA
