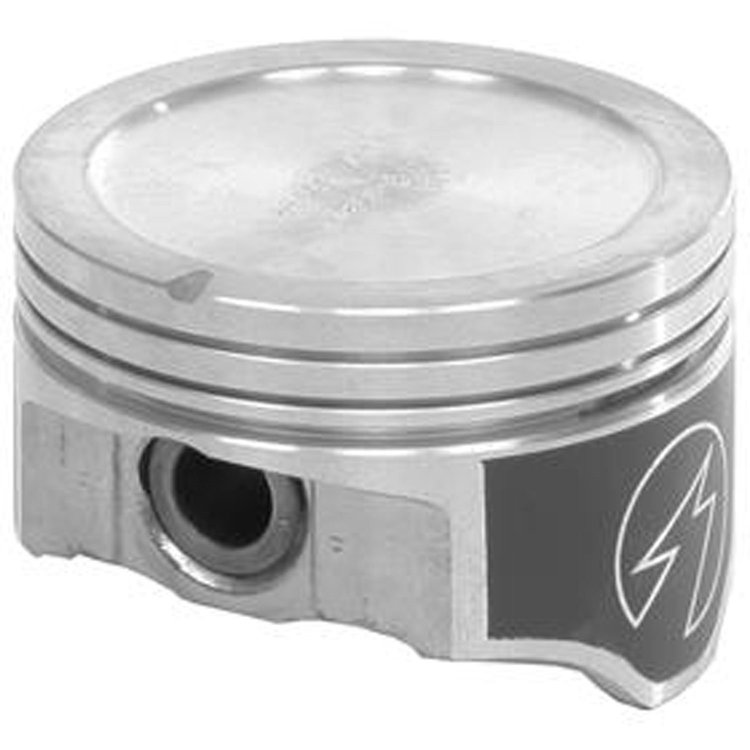

Hypereutectic Pistons GM 5.3L LS Standard
InfoVehicle Info Needed
SEALED POWERPART NUMBER: 844-H856CP

Hypereutectic Pistons GM 5.3L LS Standard

$25199
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Moly Piston Ring Set Oversize: .000"

SEALED POWER

Moly Piston Ring Set Oversize: .000"

Part Number : 844-E937K
$10399

Chevy LS
    Hypereutectic Pistons
  • GM 5.3L LS 1999-2004
  • 3.780" / 96.012mm Bore (Standard)
  • Dish Top, 0.068" Deep
  • Set of 8

    Technical Specs:
  • Material: Hypereutectic
  • Bore: 3.780' (96.012mm)
  • Piston Top: Dish Top without Valve Reliefs, .068" Deep x 3.050" Diameter
  • Compression Height: 1.325"
  • Rod Length: 6.098" (5.3L)
  • Stroke: 3.622" (5.3L)
  • Compression Ring Groove: 1.5mm
  • Second Ring Groove: 1.5mm
  • Oil Ring Groove Width: 3.0mm
  • Full Length: N/A
  • Pin Size: 0.945" O.D. (24.003mm)
  • Pin Type: Press-fit
  • Skirt Type: DUROSHIELD Coated
  • Piston Skirt Clearance: N/A
  • Notes: Use Piston Ring p/n 844-E937K Premium Set (Rings Not Included)

    Add Strength and Power to Your Pistons

    Sealed Power Hypereutectic Pistons are built to exacting tolerances and feature an aluminum casting with an anti-friction skirt coating that is highly resistant to scuffing and wear. The Duroshield skirt helps improve fuel economy, doesn't require any additional clearance, extends piston life, and increases horsepower with less friction. These durable pistons operate with tight bore clearances and work perfectly with normal-range ring end gaps, making them great for street, bracket racing, and oval track applications.

Part TypePiston
Product LineSealed Power Hypereutectic Pistons
BrandSEALED POWER
Package Height4.4
Package Width9.6
Package Length18.8
Weight11.05 PG
Part CategoryPerformance Parts
QuantitySet of 8
Part FitmentSemi Universal
Vendor Part NumberH856CP
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
p65 warning
