This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

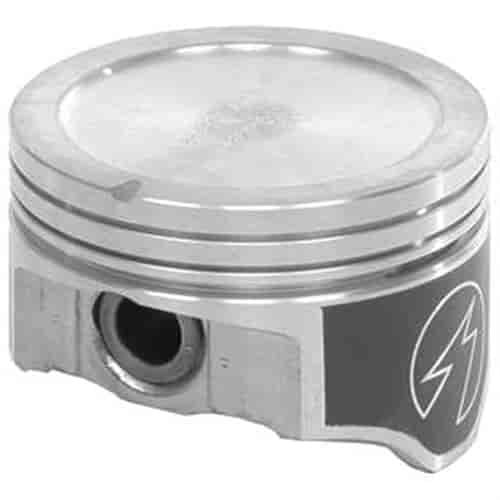

- Hypereutectic Piston
- GM 5.3L LS 1999-2004
- 3.800" (+.0197") / 96.512mm (+0.50mm) Bore
- Dish Top, 0.068" Deep
- 1/pkg.
Technical Specs: - Material: Hypereutectic
- Bore: 3.800' (96.512mm)
- Piston Top: Dish Top without Valve Reliefs, .068" Deep x 3.050" Diameter
- Compression Height: 1.325"
- Rod Length: 6.098" (5.3L)
- Stroke: 3.622" (5.3L)
- Compression Ring Groove: 1.5mm
- Second Ring Groove: 1.5mm
- Oil Ring Groove Width: 3.0mm
- Full Length: N/A
- Pin Size: 0.945" O.D. (24.003mm)
- Pin Type: Press-fit
- Skirt Type: DUROSHIELD Coated
- Piston Skirt Clearance: N/A
- Notes: Use Piston Ring p/n 844-E937K50MM Premium Set (Rings Not Included)
Add Strength and Power to Your Pistons
Sealed Power Hypereutectic Pistons are built to exacting tolerances and feature an aluminum casting with an anti-friction skirt coating that is highly resistant to scuffing and wear. The Duroshield skirt helps improve fuel economy, doesn't require any additional clearance, extends piston life, and increases horsepower with less friction. These durable pistons operate with tight bore clearances and work perfectly with normal-range ring end gaps, making them great for street, bracket racing, and oval track applications.
