Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy LS

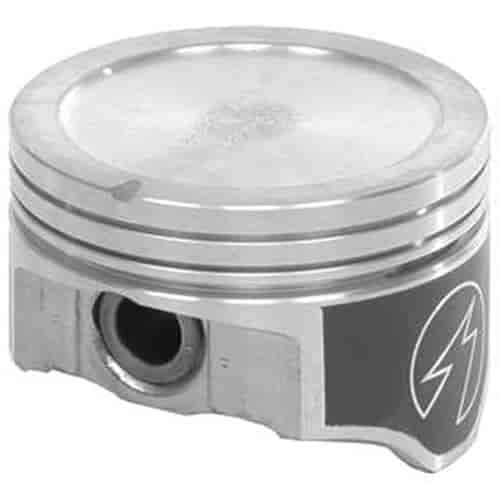

- Hypereutectic Piston
- GM 325ci 5.3L LS 1999-2004
- 3.8095" (+.0295") / 96.762mm (+0.75mm) Bore
- Dish Top, 0.068" Deep
- 1/pkg.
Technical Specs: - Material: Hypereutectic
- Bore: 3.8095' (96.762mm)
- Piston Top: Dish Top without Valve Reliefs, .068" Deep x 3.050" Diameter
- Compression Height: 1.325"
- Rod Length: 6.098" (5.3L)
- Stroke: 3.622" (5.3L)
- Compression Ring Groove: 1.5mm
- Second Ring Groove: 1.5mm
- Oil Ring Groove Width: 3.0mm
- Full Length: N/A
- Pin Size: 0.945" O.D. (24.003mm)
- Pin Type: Press-fit
- Skirt Type: DUROSHIELD Coated
- Piston Skirt Clearance: N/A
- Notes: Use Piston Ring p/n 844-E937K75MM Premium Set (Rings Not Included)
Part TypePiston
BrandSEALED POWER
Package Height5.0
Package Width5.0
Package Length5.0
Weight1.3 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
