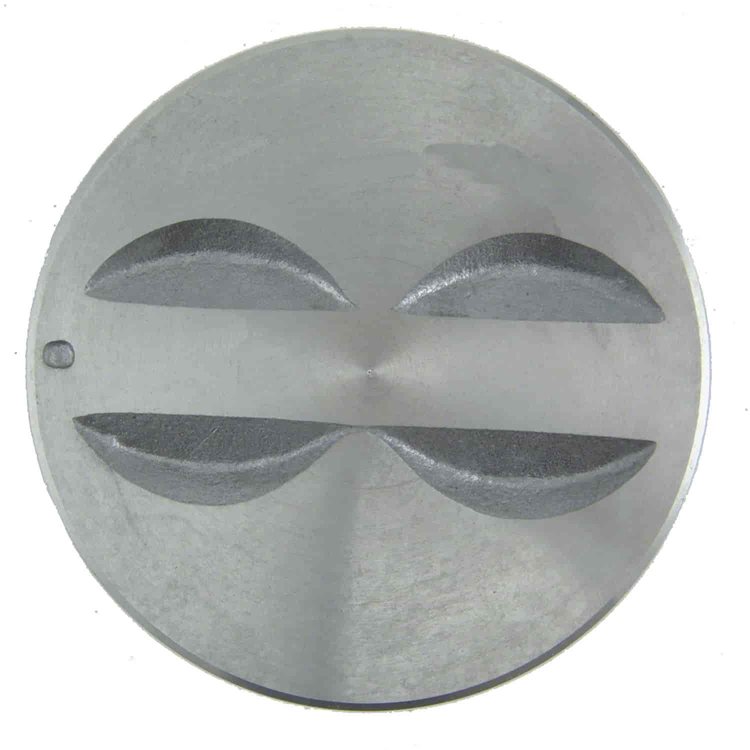

Cast Piston 1957-1967 Small Block Chevy 283 [3.935 in. Bore (+.060)]

Name: Cast Piston 1957-1967 Small Block Chevy 283 [3.935 in. Bore (+.060)]
Brand: SEALED POWER
SKU: 844-W235NP60
Price: 20.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GM Pistons

1957-1967 Small Block Chevy 283 ci
3.935 in. Bore (+.060)
Flat Top w/4 Valve Reliefs
Sold Individually

Technical Specs:
Material: Cast Aluminum
Bore: 3.935' (99.95mm)
Piston Top: Flat Top w/4 Valve Reliefs
Compression Height: 1.780"
Compression Ring Groove: 5/64"
Second Ring Groove: 5/64"
Oil Ring Groove Width: 3/16"
Full Length: N/A
Pin Size: 0.9278" O.D. (23.57mm)
Pin Type: N/A
Skirt Type: Non-Coated
Piston Skirt Clearance: N/A
Notes: Use Piston Ring p/n 844-E245X60 Standard Set; p/n 844-E245K60 Premium Set (Rings Not Included)

Part TypePiston

BrandSEALED POWER

Package Height4.5

Package Width4.5

Package Length4.5

Weight1.62 PG

Part CategoryReplacement Parts

Vendor Part NumberBSEW235NP60

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
