Product Discontinued
SILVER SPORT TRANSMISSIONSPART NUMBER: 833-TCET 18086

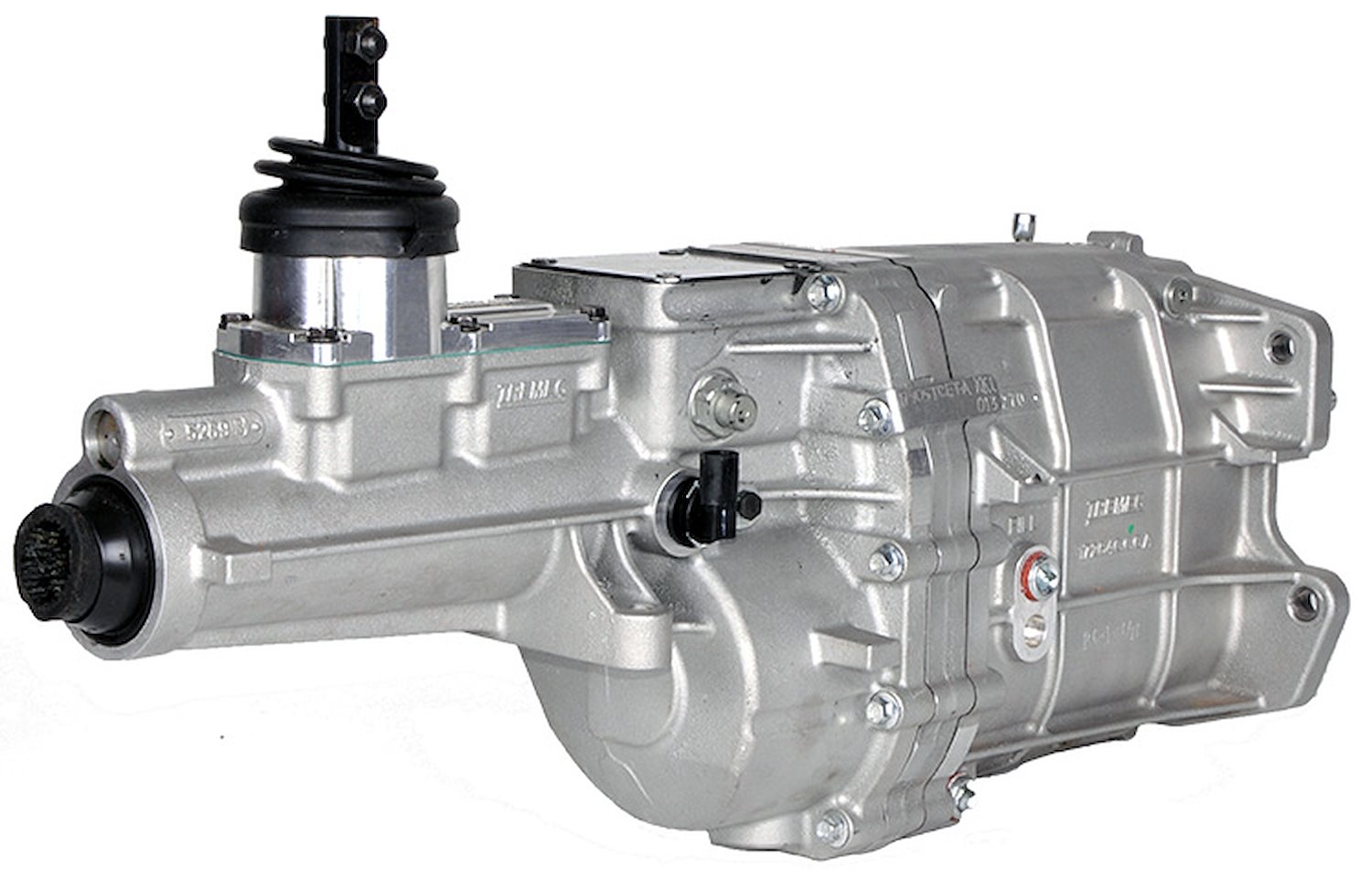

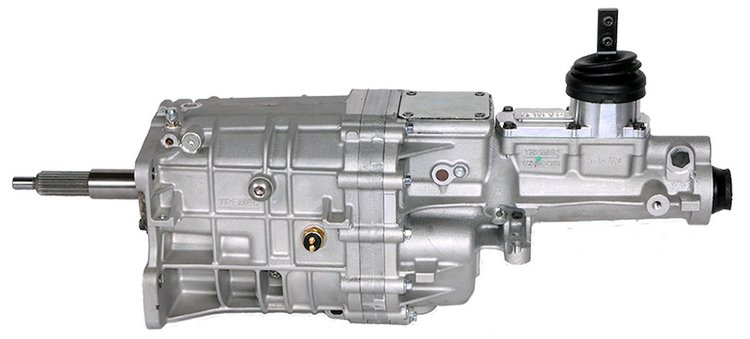

Tremec TKX 5-Speed Manual Transmission Ford 1-1/16 in. x 10-Spline
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford
TKX 5-Speed Manual TransmissionFord V8 1-1/16 in. x 10-Spline Input 0.72 5th Gear Ratio 600 ft.-lbs. TQ Rating Sold Individually
Silver Sport Transmissions TCET18086
Features:
- Capable of 8,000 RPM engine speeds with shifts at 7,500 RPMs
- A compact end-loaded design for clearance in most transmission tunnels without floor modifications
- Three-piece aluminum case housing for increased structural stiffness
- Gaskets at all flanges to eliminate fluid leaks
- Multi-cone synchronizers and hybrid synchronizer rings made from sintered bronze and carbon
- Special-grade steel (ASTM 4615) gears and shafts increase the torque carrying capacity
- High-performance short-throw billet-aluminum shifter delivers clean, crisp shifts and isolates road noise
- Internal three-rail shift system and steel shift forks
- Oversized gear widths prolong the gear life
- Caged needle bearings in all gear positions
- Gear ratios: 1st: 3.27, 2nd: 1.98, 3rd: 1.34, 4th: 1.00, 5th: 0.72, R: 3.00
Your Aftermarket Performance Transmission Solution
Silver Sport Silver Sport Transmissions TKX 5-Speed Manual Transmissions are manufactured with one thing in mind, performance! This new and improved design is more compact and provides clearance in most transmission tunnels without floor modifications. They feature a three-piece aluminum housing, special-grade steel gears and shafts, and multi-cone synchronizers and hybrid synchronizer rings, all of which deliver superior strength and smooth, precise shifting. Available in multiple GM and Ford case patterns and input configurations, and gear ratios.
Part TypeManual Transmission
Product LineSilver Sport Transmissions TKX 5-Speed Manual Transmissions
BrandSILVER SPORT TRANSMISSIONS
Package Height13.0
Package Width19.0
Package Length34.75
Weight120.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
