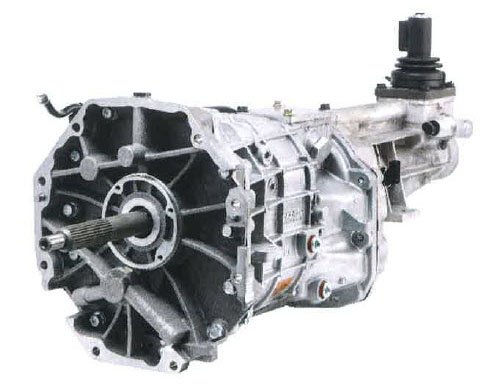

TUET 18132 Tremec Magnum XL 6-Speed Transmission, For GM 5.7/6.2L, 2.97 First Gear Ratio

Name: TUET 18132 Tremec Magnum XL 6-Speed Transmission, For GM 5.7/6.2L, 2.97 First Gear Ratio
Brand: SILVER SPORT TRANSMISSIONS
SKU: 833-TUET 18132
Price: 3695.00 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Magnum XL 6-Speed Transmission

GM 5.7/6.2L

Input/Output Spline: 26/31

Torque Capacity: 700

1st Gear: 2.97

2nd Gear: 2.10

3rd Gear: 1.46

4th Gear: 1.00

5th Gear: 0.08

6th Gear: 0.63

Reverse: 2.90

Silver Sport Transmissions TUET 18132 Silver Sport Transmissions GM Magnum XL 6-Speed Transmission:

The Magnum XL is an extension of our revered Magnum 6-speed series. Featuring all the most important content from the original, the XL retains the Magnum’s brute strength and sophistication but eliminates its multiple shifter locations and dual speedo outputs. Refinements include a new extended-length tail section designed to eliminate the semi-remote shifter found in many popular late-model applications.

Extension Housing Locates Shifter an Additional 8 in. Rearward from Original Magnums Location (28.46 in. from Face of Bellhousing)
Direct Mount Shifter Delivers Great Shift Feel with Short Throws and Smooth Gear Synchronization
The Shifter Isolator Dampens Interior Noise and Vibration
Capable of 7,800 RPM Shifts
Case Material: Aluminum
Number of Gears: 6
Shifter Included: Yes
Yoke Included: No
Yoke Style: Slip-on
Input Shaft Diameter: 1.125
Bellhousing Included: No

Part TypeManual Transmission

BrandSILVER SPORT TRANSMISSIONS

Package Height20.5

Package Width22.5

Package Length46.5

Weight200.0 PG

Part CategoryPerformance Parts

Number Of Gears6

Input Spline Quantity26

QuantitySold individually

Input Shaft Diameter1.125 in (28.575 mm)

Case MaterialAluminum
