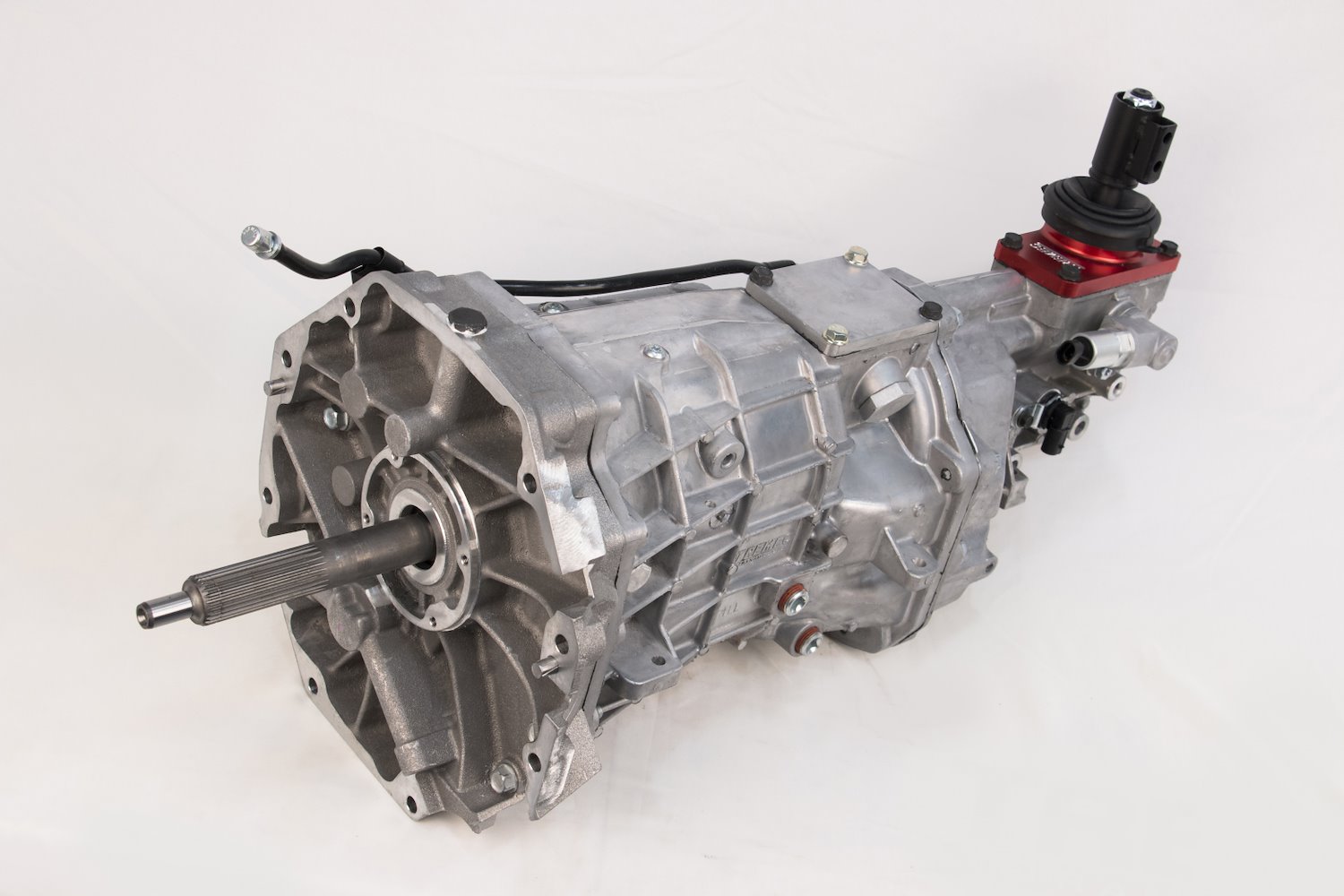

TUKT 12021 Tremec T-56 Magnum XL 6-Speed Manual Transmission, For Ford Modular V8
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
TUKT 12021 Features:
The Magnum XL is an extension of our revered Magnum 6-speed series. Featuring all the most important content from the original, the XL retains the Magnum’s brute strength and sophistication but eliminates its multiple shifter locations and dual speedo outputs. Refinements include a new extended-length tail section designed to eliminate the semi-remote shifter found in many popular late-model applications. Initially Available For 2005-Up "S197" Mustangs, The Magnum XL Also Includes An SFI-Approved Steel Bellhousing, Swap swap-specific cross-member, and an OE-Quality Mount. For Strength Purposes, the Magnum XL Requires A 26-spline Clutch and One-Piece Driveshaft.
- For Ford modular applications
- Transmission-mount isolated shifter and shift ball
- An extended-length tail section that is designed to eliminate the semi-remote shifter found in many popular late-model applications
- Reuses the OEM hydraulic clutch release system
- Input Shaft Diameter: 1.125
- Input Shaft Spline Quantity: 26
- Output Shaft Spline Quantity: 31
- Bellhousing Included: Yes
- Bellhousing Material: Steel
- Case Material: Aluminum
- Number of Gears: 6
- Shifter Included: Yes
- Yoke Included: No
- Yoke Style: Slip-on
The Ultimate Manual Transmission
The Silver Sport Transmissions Magnum XL 6-Speed Transmission has all the performance capabilities and features of the original Magnum Transmissions, but its extended-length tail section eliminates the semi-remote shifter location.
