Made in USA
Latch & Link System Lap Belt 24" Minimum Adjustment
Product Discontinued
SIMPSONPART NUMBER: 856-29022BL

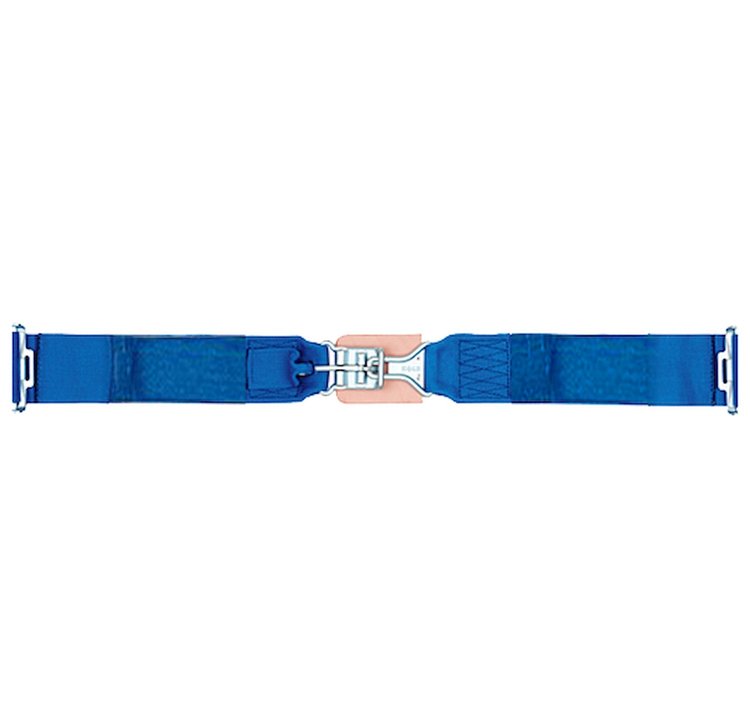

Latch & Link System Lap Belt 24" Minimum Adjustment

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Wraparound Restraint Mounts
    Latch & Link System Lap Belt
  • 24'' Minimum Adjustment
  • Pull-Down Adjusters
  • Wraparound Mount
  • Blue


    Simpson 856-29022BL Features:

    3" LAP BELT WRAP AROUND 55",

Proven Reliability for Decades!

This Latch & Link System is the original military aircraft latch design that was adapted for motorsports years ago. It still performs with outstanding reliability and ease. Egress is simple, one flip of the latch arm and you're out! Latch components are drop forged alloy steel for strength and durability, and lap belts are made of standard 3" military spec webbing. The belt adjuster mechanisms include anti-slip springs as standard issue so you stay right where you are. Lap belts have rugged leather skirting attached behind the latch mechanism to provide extra comfort. This is Simpson's original racing system that was designed for maximum reliability and affordability.

Show More

Features

  • Drop-Forged Alloy Steel with Cadmium Plating
  • Lap Belts are Standard 3'' Military Specification Webbing with Heat Cut & Sealed Ends
  • Pull-Up or Pull-Down Adjusters
  • Adjusters Include Anti-Slip Springs
  • Black, Blue, Red, or Platinum Series




    Standard Latch & Link System



    Restraint Mounting Types</font

    Note: ''Pull-Up Adjusters'' and ''Pull-Down Adjusters'' indicate the direction that tightens the lap belt adjusters. For example, a ''Pull-Up Adjuster'' is always the best choice in a Dragster. It is much easier, and safer, to tighten your belts in an upward motion (towards the latch) rather than a downward motion (away from the latch) because of the limited space.

Part TypeSeat Belt
Product LineSimpson Standard Latch & Link System Lap Belts
BrandSIMPSON
Part CategoryPerformance Parts
Mounting StyleWraparound
Belt MaterialPolyester
QuantitySold individually
Overall Length55 in (1397 mm)
Belts IncludedLap belt
Belt ColorBlue
Latch StyleLatch
Harness TypeLap belt
Number Of Mounting Points2-point
Lap Belt Width3 in (76.2 mm)
Belt AdjustmentPull down
Part FitmentUniversal
Mounting LocationRoll bar
Safety RatingSFI 16.1
Vendor Part Number29022BL
Package Qty1
Package TypeEA
