Lever Camlock System Lap Belt 55" Maximum Adjustment
Product Discontinued
SIMPSONPART NUMBER: 856-32020BL

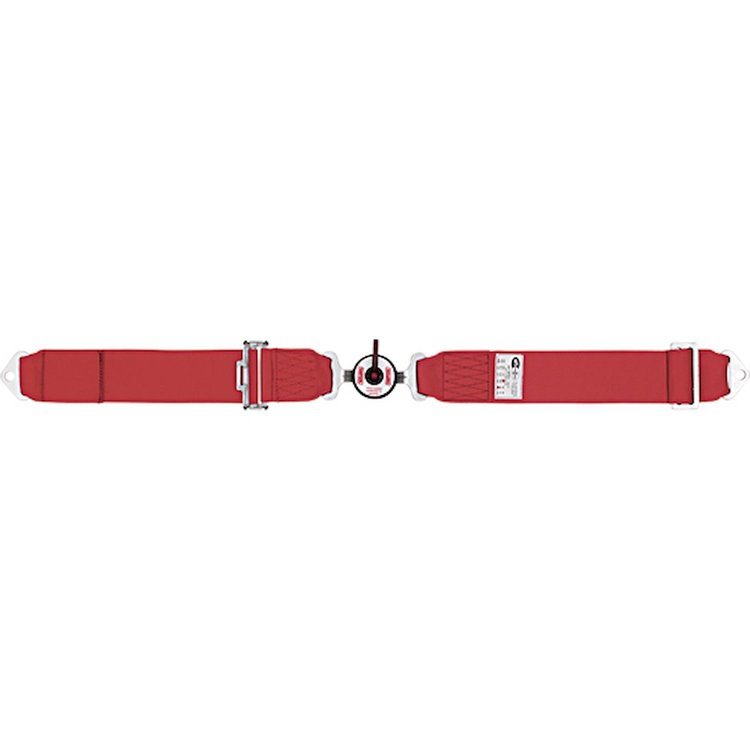

Lever Camlock System Lap Belt 55" Maximum Adjustment

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Floor Restraint Mounts
    Lever Camlock System Lap Belt
  • 55'' Maximum Adjustment
  • Pull-Down Adjusters
  • Floor Mount
  • Blue


    Simpson 856-32020BL Features:

    CAMLOCK BUCKLE 55" F/M, BLUE

Engineered to Eject Belt Clips Quickly!

The Camlock buckle is fully CNC-machined from aircraft billet aluminum for precision quality. Hardened steel tumblers lock the stainless steel belt and harness tabs into the Camlock buckle with a quick snap. Egress is just as simple, one flip of the Camlock lever arm and you're out! The lap belts are made of standard 3" military spec webbing. The belt adjuster mechanisms include an anti-slip spring as standard issue so you stay right where you are. This is Simpson's latest design in racing harness systems for maximum reliability at a very affordable price.

Show More

Features:

  • SFI 16.1 Approved
  • Fully CNC-machined Camlock Mechanism with Matte Black Finish
  • Lap Belts are Standard 3'' Military Specification Webbing with Heat Cut & Sealed Ends
  • Pull-Up or Pull-Down Adjusters
  • Adjusters Include Anti-Slip Springs
  • Black, Blue, Red, or Platinum Series

    Lever Camlock System



    Restraint Mounting Types</font

    Note: ''Pull-Up Lap Belt Adjusters'' and ''Pull-Down Lap Belt Adjusters'' indicate the direction that tightens the lap belt adjusters. For example, a ''Pull-Up Lap Belt Adjuster'' is always the best choice in a Dragster. It is much easier, and safer, to tighten your belts in an upward motion (towards the latch) rather than a downward motion (away from the latch) because of the limited space.

Part TypeSeat Belt
Product LineSimpson Lever Camlock System Lap Belts
BrandSIMPSON
Package Height3.0
Package Width6.6
Package Length11.5
Weight3.05 PG
Part CategoryPerformance Parts
Mounting StyleClip-in
Belt MaterialNylon
QuantitySold individually
Overall Length55 in (1397 mm)
Belts IncludedLap belt
Belt ColorBlue
Latch StyleCamlock
Harness TypeLap belt
Number Of Mounting Points2-point
Lap Belt Width3 in (76.2 mm)
Belt AdjustmentPull down
Part FitmentUniversal
Mounting LocationFloor
Safety RatingSFI 16.1
Vendor Part Number32020BL
Package Qty1
Package TypeEA
