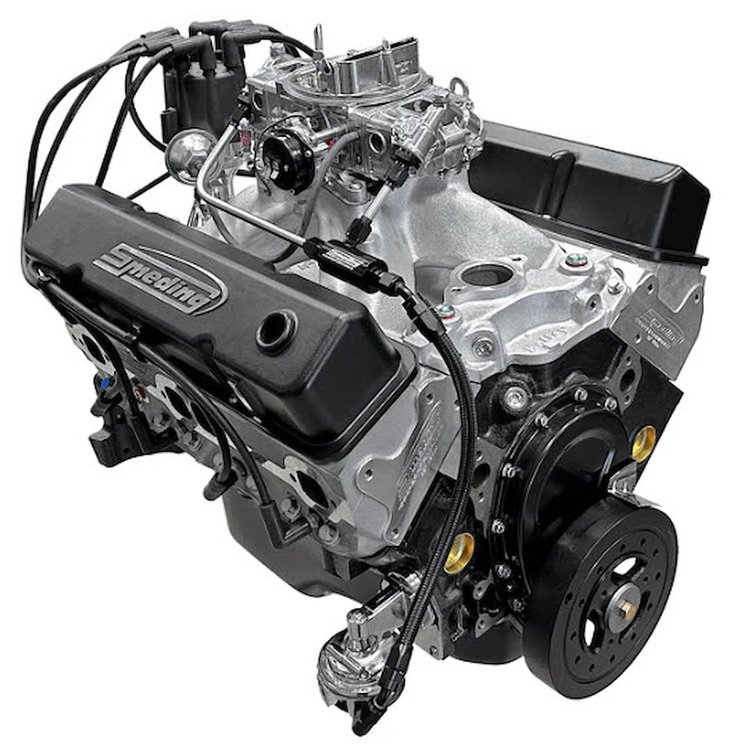

Smeding SBC406ELIM770SC Small Block Chevy 406 ci. Eliminator 540 HP Engine.:

• Block:
  • 4.125 in. Bore
  • Heavy-Duty 4-Bolt Mains
  • 9.025 in. Deck Height
  • 1-Piece Rear Main Seal
  • Machined for OE Hydraulic Roller
• Crankshaft:
  • 4340 Forged Steel
  • 3.800 in. Stroke
  • Internal Front / External Rear Balance
  • 1-Piece Rear Main Seal
• Connecting Rods:
  • 5140 Forged Steel I-Beam
  • Floating Wrist Pins
  • 5.700 in. Length
  • 12pt 3/8 in. SP8740 Fasteners
• Pistons:
  • 2618 Forged Aluminum
  • 18 cc Dish
  • Coated Skirts
• Rings:
  • Stainless Steel Top
  • Napier 2nd
  • Low Tension Oil
  • 1.2 mm, 1.2 mm, 3.0 mm
• Camshaft:
  • Hydraulic Roller
  • 236 in. Intake / 244 in. Exhaust Duration @ .050 in.
  • .544 in. Intake / .543 in. Exhaust Lift
  • 110 LSA (Lobe Separation Angle)
  • OE Roller Design
• Lifters:
  • Hydraulic Roller, OE Roller Design
• Timing Set:
  • True Roller, OE Roller Design
• Oil System:
  • Melling M55 Standard Volume Oil Pump
  • Black 6 qt. Steel Oil Pan
• Front Drive Components:
  • Black Steel Timing Cover
  • 8 in. Harmonic Balancer
• Cylinder Heads:
  • 195 cc Intake Runners
  • 2.02 in. Intake / 1.60 in. Exhaust Valves
  • Hydraulic Roller Valve Springs
• Pushrods:
  • 7.200 in. Length
  • 5/16 in. Diameter
• Rocker Arms:
  • 1.5 Ratio
  • Aluminum Body
  • Full Roller
• 3/8 in. Rocker Arm Studs
• Hardened Guide Plates
• Induction:
  • Holley Strip Dominator Single Plane
  • Holley Brawler 770 cfm, Electric Choke
• Valve Covers:
  • Black Cast Aluminum
• Ignition:
  • Electronic Small Cap Distributor
  • 8 mm High Energy Spark Plug Wires w/ Looms
• Bearings:
  • King Bi-Metal
• Cam Bearings:
  • Dura-Bond, Installed
• Brass Freeze Plugs - Installed
• Oil Plugs - Installed
• Dowel Pins - Installed

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
