Short Blocks

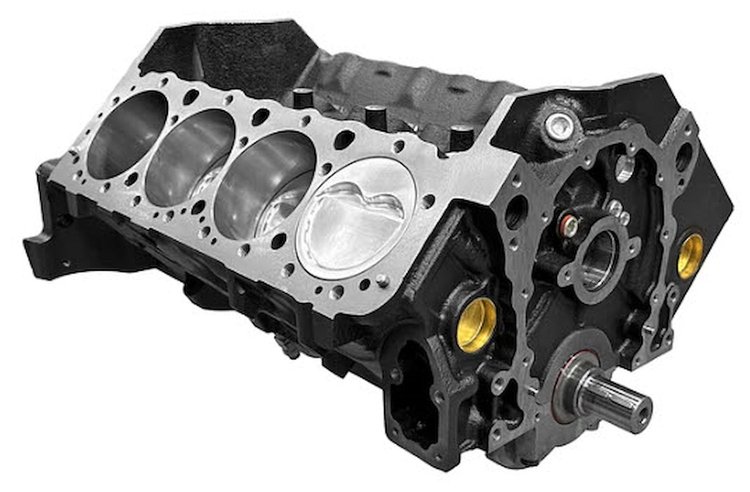

Small Block Chevy 406 ci. Short Block
  • Block: 4-Bolt Main w/1-Piece Rear Main Seal
  • Crankshaft: 4340 Forged Steel 3.800 in. Stroke
  • Connecting Rods: 5140 Forged Steel 5.7 in. I-Beam
  • Pistons: Hypereutectic Aluminum
  • Rings: Plasma-Moly

    Smeding SBC406SB Small Block Chevy 406 ci. Short Block:

    • Block:
      • 4.125 in. Bore
      • Heavy-Duty 4-Bolt Mains
      • 9.025 in. Deck Height
      • 1-Piece Rear Main Seal
      • Machined for OE Hydraulic Roller
    • Crankshaft:
      • 4340 Forged Steel
      • 3.800 in. Stroke
      • Internal Front / External Rear Balance
    • Connecting Rods:
      • 5140 Forged Steel I-Beam
      • 5.700 in. Length
      • 3/8 in. Bolts
      • Floating Wrist Pins
      • 12pt 3/8 in. SP8740 Fasteners
    • Pistons:
      • 2618 Forged Aluminum
      • 18 cc Dish
      • Coated Skirts
    • Rings:
      • Stainless Steel Top
      • Napier 2nd
      • Low Tension Oil
      • 1.2 mm, 1.2 mm, 3.0 mm
    • Bearings:
      • King Bi-Metal
    • Cam Bearings:
      • Dura-Bond, Installed
    • Compression Ratio:
      • 10.0:1 w/64 cc Heads
      • 9.3:1 w/72 cc Heads
    • Brass Freeze Plugs - Installed
    • Oil Plugs - Installed
    • Dowel Pins - Installed

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Custom-Built Stroker Engines

      Smeding Performance Small Block Chevy 406 ci. Crate Engines are the highest quality engines available on the market today, built with modern manufacturing and machining equipment.

    Part TypeEngine Short Block
    Product LineSmeding Performance Small Block Chevy 406 ci. Crate Engines
    BrandSMEDING PERFORMANCE
    Package Height25.4
    Package Width27.0
    Package Length31.7
    Weight175.0 PG
    Part CategoryPerformance Parts
    Engine TypeHigh-Performance Crate Engine
    Engine Block MaterialCast Iron
    Engine Assembly StyleShort Block
    Part FitmentSemi Universal
    Engine Displacement406 ci.
    Engine Make/SizeChevy Small Block
    Vendor Part NumberSBC406SB
    Package Qty1
    Package TypeEA
